Product number:
79925
verlängerbar bis 45m, LED-Strip,230V,12W/m,IP65,3000K, CRI90
Product information "verlängerbar bis 45m, LED-Strip,230V,12W/m,IP65,3000K, CRI90"
- Construction site lighting in LED strip design
- for outdoor use, IP65
- UV-resistant
- number of LEDs: 3600
- LED pitch: 8.33 mm
- beam angle: 120°
- CRI: >90
- luminous flux per meter: 1110 lm
- voltage: 230 V AC
- power per meter: 12 W
- energy efficiency class: F
- lifetime L70B50: >= 50,000 h

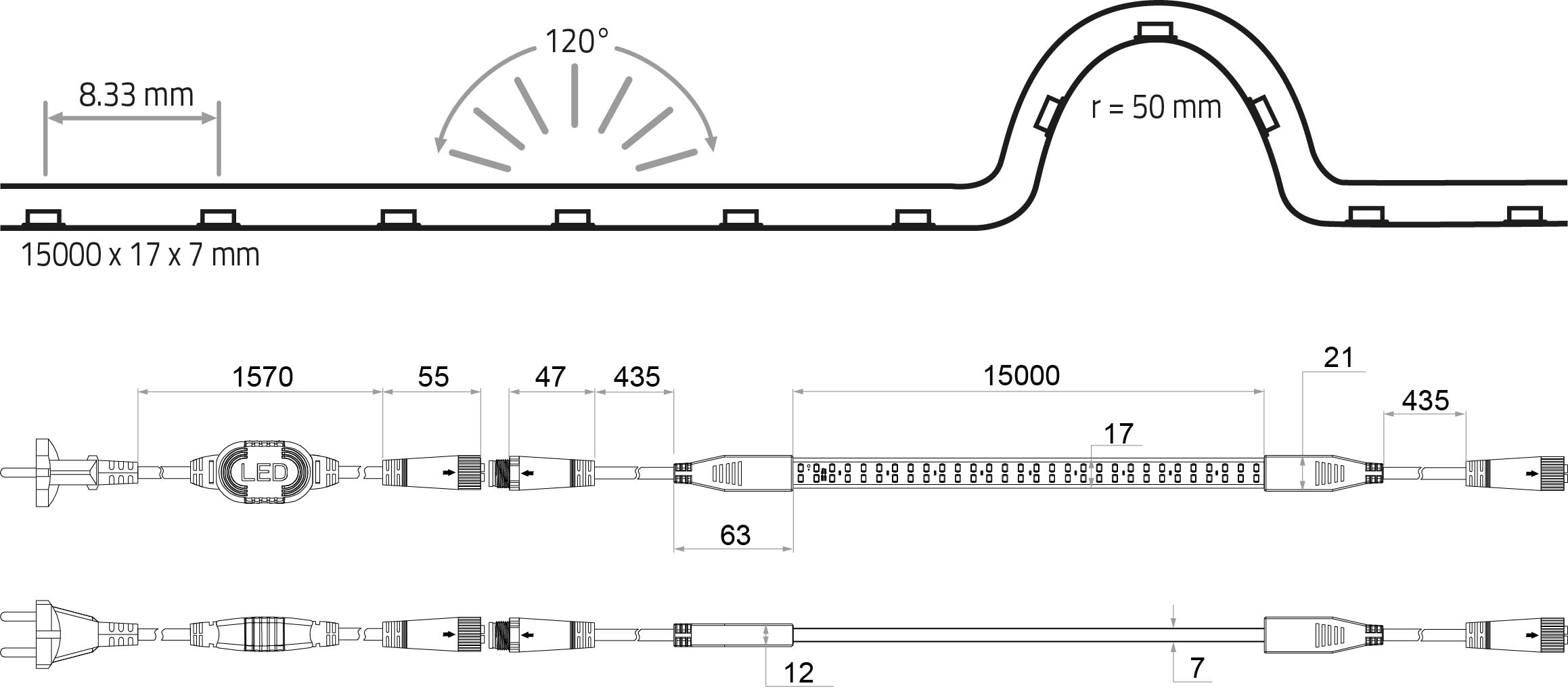

- LxWxH in mm: 15.000 x 17 x 7
- Attention: Only operate the LED strip when completely unrolled
- Maximum length per connection: 45 meter

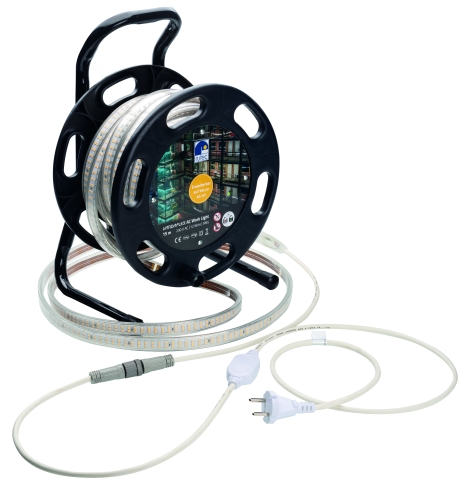

- Scope of delivery: 15 metre roll wound onto a drum with 1.5 m connection cable with rectifier and
- contour plug (CEE7/17) at the beginning and a 0.4 m cable and M15 socket at the end for connecting
- to the next VARDAflex AC Work Light+
- Suitable for use on construction sites in accordance with DGUV-I 203-005,K2 + DGUV-I 203-006
Technical Data
| BAR code: | 4012094799254 |
|---|---|
| Width: | 17 mm |
| Height: | 7 mm |
| Length: | 15000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 16650 lm |
| Lumen per LED (lm): | 4,63 lm |
| Current: | 782 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 240 |
| Power W/m: | 12 |
| Lumen per meter: | 1110 |
| Lumen per watt: | 92,5 |
| IP protection rating: | 65 |
| Power: | 180 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 230 V |
| Anzahl led: | 3600 |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 28000 |
