CE
Ceiling cutout round
Control gear interchangeable
DALI2
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Interseroh
Light source interchangeable
Only suitable for indoor installations
Parallel connection
Protection class II
REACH
RoHS
Product number:
C+XL-1-1-WW-80-60-12
starr,rd,230V,7/9/14/18/24W,IP20,3000K,CRI80,RAL9016,60°

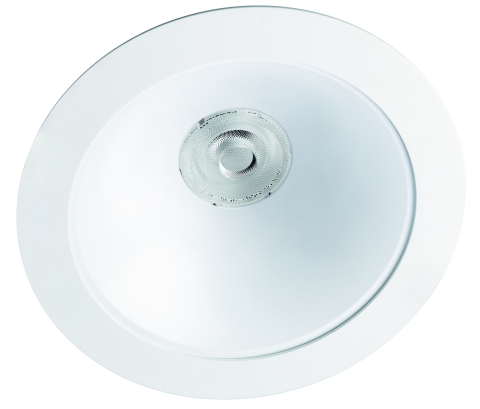

Product information "starr,rd,230V,7/9/14/18/24W,IP20,3000K,CRI80,RAL9016,60°"
- Downlight for indoor use, IP20
- Front ring of galvanised sheet steel, powder-coated
- COB module carrier and lens interchangeable
- Trumpet reflector of ultra-pure aluminium, powder-coated matt white
- Housing colour: RAL9016
- High-quality PMMA optic for precise light control and very good glare control
- Homogeneous symmetrical illumination, UGR<19
- Beam angle: 60°
- Power: 7, 9, 14, 18 or 24 W
- Light colour: 3000 K
- Luminous flux: 1030, 1280, 2000, 2500 or 3465 lm
- CRI: >80
- Lifespan L70B50: >= 60,000 h
- Lifespan L80B10: >= 50,000 h
- Input voltage: 220-240 V AC, 50/60 Hz
- Protection class II

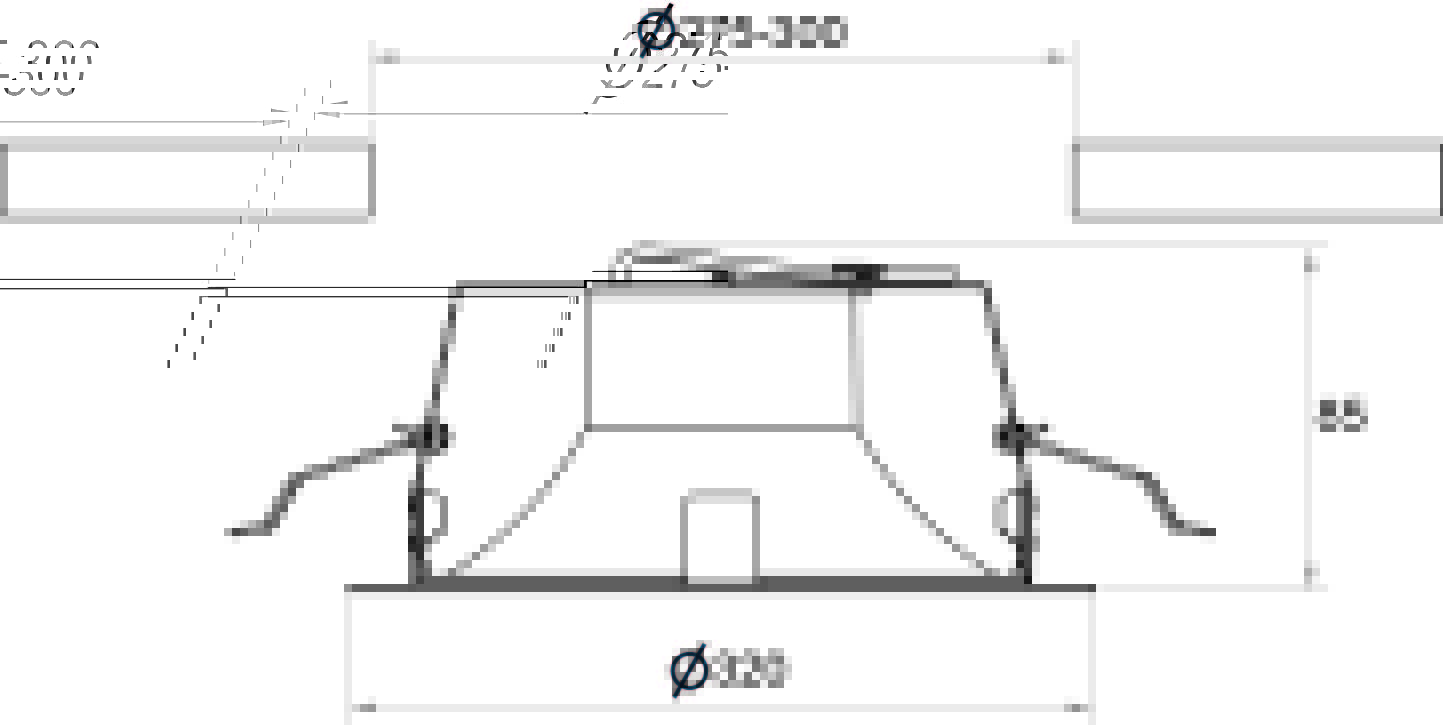

- Installation depth: 85 mm
- Ceiling cut-out: 275-300 mm
- Outer diameter: 320 mm
- Tool-free installation in the ceiling with tension springs that adapt to the ceiling thickness
- (1 - 30 mm)
- Installation in concrete pots possible
- Control gear with luminaire cable pre-assembled for easy installation
- Suitable for through-wiring
- Dimmable via DALI-2 or Push-Dim
- Can be used in central battery emergency lighting systems in accordance with EN61347-2-13 Annex J
- This product contains a light source of energy efficiency class D
Technical Data
| BAR code: | 4012094189772 |
|---|---|
| Height: | 85 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Installation diameter: | 300 mm |
| Outer diameter: | 320 mm |
| Lumen per fixture (lm): | 3465 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 200-700 mA |
| Installation depth: | 85 mm |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 144,38 |
| IP protection rating: | 20 |
| Power: | 7-24 W |
| CRI: | 80 |
| Catalog color code: | weiß RAL9016 |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 60 Grad ° |
| Voltage: | 220-240 V |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | containing product |
| Psb: | 0,00 |
| Service life L90B10: | 42000 |
