CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
PEC351UWWOK

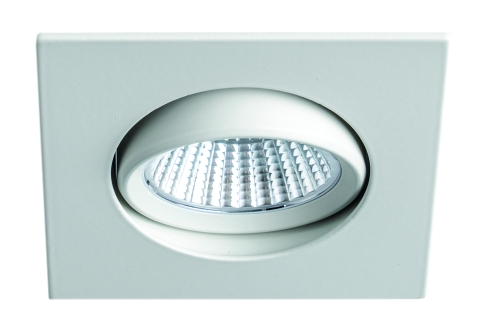

schwenkb.quadr.,350mA,7W,IP40,2700K,CRI90-weiss
Product information "schwenkb.quadr.,350mA,7W,IP40,2700K,CRI90-weiss"
- for indoor use, IP40
- housing: diecast aluminium, PC reflector, protective screen
- housing colour: matt white
- swiveling 2x25°
- beam angle: 40°
- power: 7 W
- light colour: 2700 K
- luminous flux: 620 lm
- CRI: >90
- lifespan L70B50: >= 50.000 h
- input current: 350 mA DC
- protection class III
- installation depth: 60 mm
- ceiling cut out: 68 mm

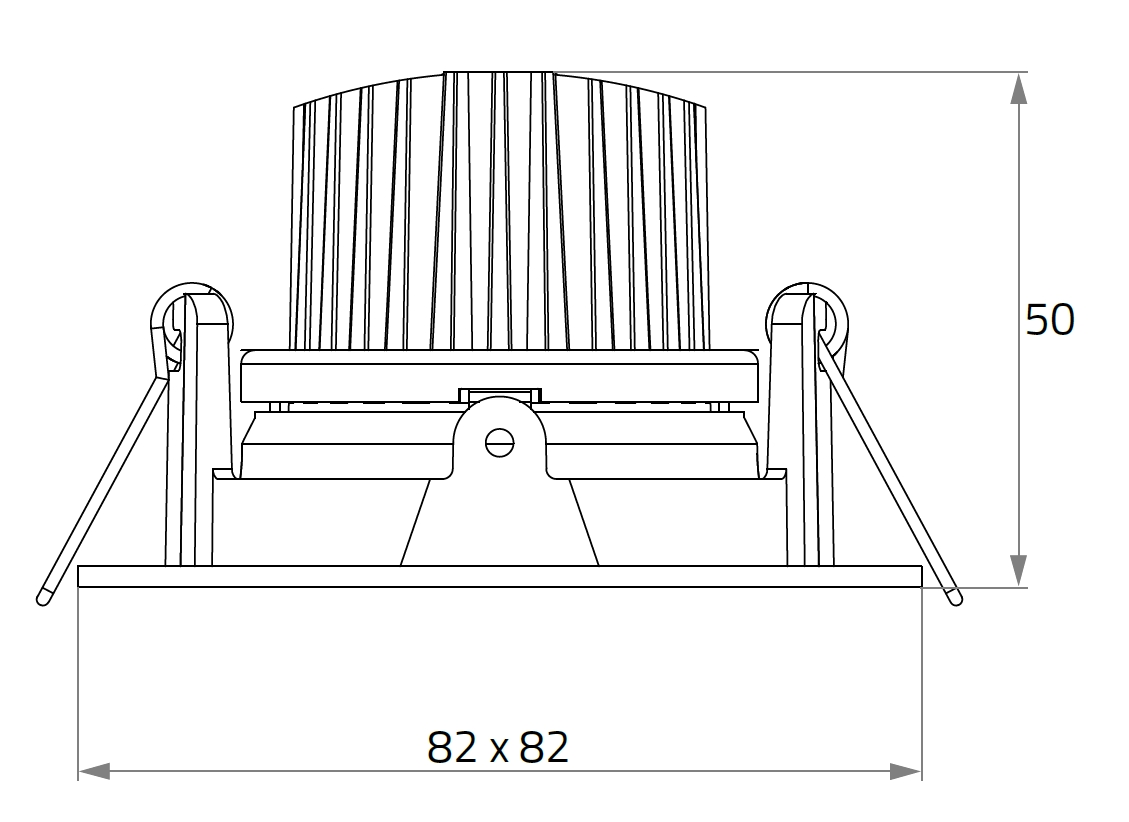

- outer dimensions: 82 x 82 mm
- energy efficiency class: F
- without constant current converter - please order separately
Technical Data
| BAR code: | 4251835833516 |
|---|---|
| Width: | 82 mm |
| Height: | 50 mm |
| Length: | 82 mm |
| Unit Code: | piece |
| Installation diameter: | 68 mm |
| Booformat eckig: | Yes |
| Lumen per fixture (lm): | 620 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 60 mm |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 88,57 |
| IP protection rating: | 40 |
| Power: | 7 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Sockel code: | ohne |
| Gehaeuse code: | Aluminium |
| Re skus: | PHE443,PHE444 |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
