CE
Control gear interchangeable
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Independent converter
Light source interchangeable
Low voltage correction
Only suitable for indoor installations
Power factor correction
Protection class II
Protection class III
RoHS
Series connection
Short circuit protection
Suitable for furniture installations
Without snap ring
Product number:
ALU57341WWD

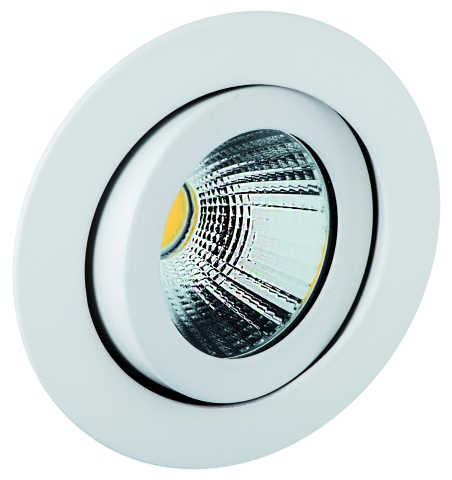

schwenk.,rund,350mA,8W,IP20,3000K,CRI90 - Weiß
Product information "schwenk.,rund,350mA,8W,IP20,3000K,CRI90 - Weiß"
- for indoor use, IP20
- housing: diecast aluminium, glass reflector, protective glass
- housing colour: white
- 30° swiveling
- beam angle: 40°
- power: 8 W
- light colour: 3.000 K
- luminous flux: 715 lm
- CRI: >90
- lifespan L70B50: >= 54,000 h
- input voltage range: 230 V AC, 50/60 Hz
- protection class II
- installation depth: 40 mm
- ceiling cut out: 68 mm
- outer diameter: 82 mm
- including constant current converter dimmable via phase cut dimmer
- with connector for plug-and-play-operation
- tool-free replacement of the lamp
- this product contains a light source of energy efficiency class F
Technical Data
| BAR code: | 4012094373416 |
|---|---|
| Height: | 31 mm |
| Unit Code: | piece |
| Installation diameter: | 68 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 715 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 40 mm |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 89,38 |
| IP protection rating: | 20 |
| Power: | 8 W |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Sockel code: | sonstige |
| Input voltage: | 230 |
| Output voltage: | 17-23 |
| Gehaeuse code: | Aluminium |
| Toleranz: | 6 |
| Effizienz: | 79 |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | containing product |
