CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Without snap ring
Product number:
ALU57341UWWOK-M

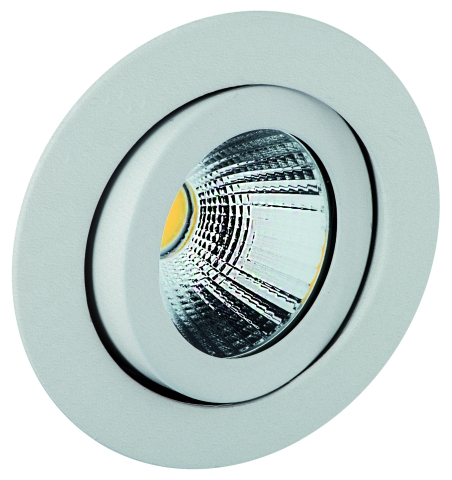

schwenk.,rund,350mA,8W,IP20,2700K,CRI90-Weiß matt
Product information "schwenk.,rund,350mA,8W,IP20,2700K,CRI90-Weiß matt"
- for indoor use, IP20
- housing: diecast aluminium, glass reflector, protective glass
- housing color: white
- 30° swiveling
- beam angle: 40°
- power: 8 W
- light color: 2,700 K
- luminous flux: 694 lm
- CRI: >90
- lifetime L70B50: >= 54,000 h
- input: 350 mA DC
- protection class III

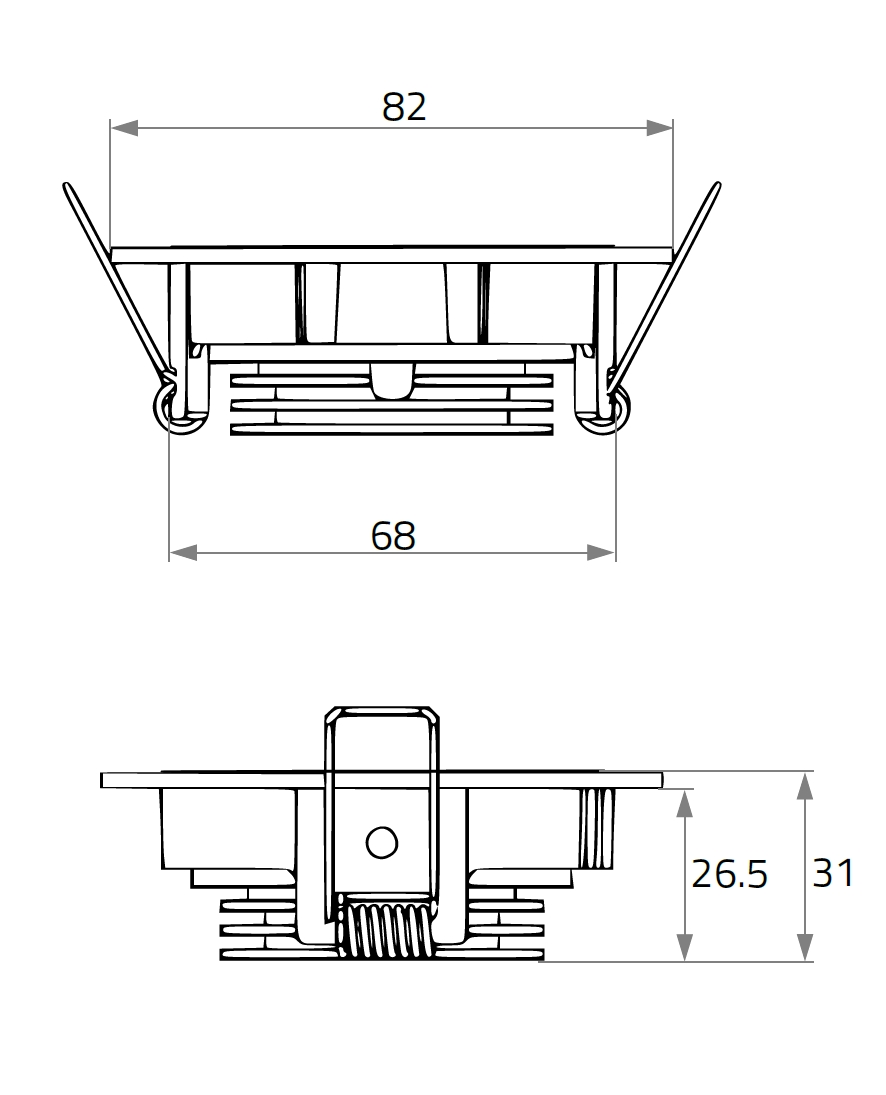

- installation depth: 40 mm
- ceiling cut-out: 68 mm
- outer diameter: 82 mm
- energy efficiency class: F
- not included LED converter
Technical Data
| BAR code: | 4012094674414 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 68 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 694 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 40 mm |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 86,75 |
| IP protection rating: | 20 |
| Power: | 8 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Sockel code: | ohne |
| Gehaeuse code: | Aluminium |
| L70: | 50000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 46000 |
