CE
Independent converter
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
80902

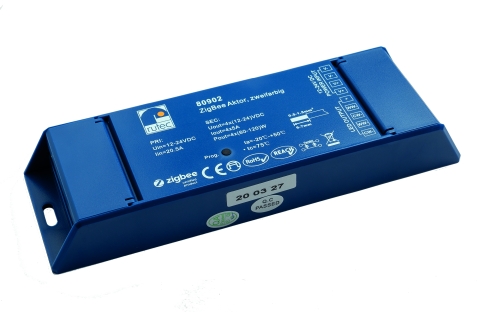

Zigbee Aktor 240W/12V 480W/24V zweifarbig
Product information "Zigbee Aktor 240W/12V 480W/24V zweifarbig"
- The Zigbee Actuator can switch and dim two-color constant-voltage LEDs
- compatible with Philips Hue and the Amazon Echo Plus
- almost unlimited reach through a mesh network
- for indoor use
- material: plastic
- protection: IP20
- protection class III, CE, RoHS, REACH
- input voltage: 12 V or 24 V DC
- power: 4 x 60 W (12 V) / 4 x 120 W (24 V)
- transmission and reception frequency: 2.4 GHz
- max. wire cross-section at the terminal block: 1.5 sq mm
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094809021 |
|---|---|
| Width: | 53 mm |
| Height: | 23 mm |
| Length: | 166 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 20000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 240-480 W |
| Catalog color code: | sonstige |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
