CE
Disposal instructions according to 2012/19/EU
Only suitable for indoor installations
Parallel connection
Protection class II
RoHS
Product number:
59400WW

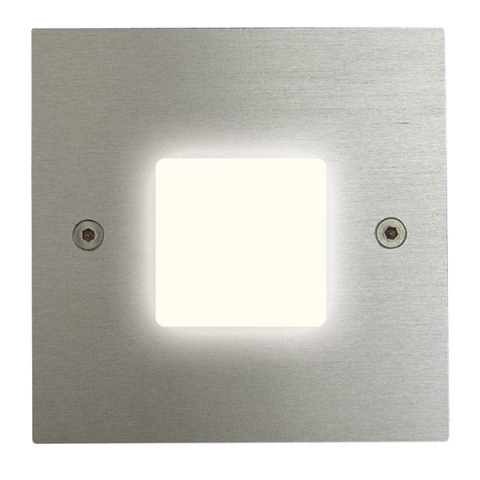

WANDEINBAULEUCHTE LED WARMWS.
Product information "WANDEINBAULEUCHTE LED WARMWS."
- LED recessed wall spotlight for switch boxes
- for indoor use, IP20
- housing: stainless steel; protective glass matt
- housing color: stainless steel brushed
- not swiveling
- load: 1 W
- light colour: 3000 K
- luminous flux: 14 lm
- CRI: >80
- lifespan L70: >= 30.000 h
- input: 230 V AC
- protection class I
- mounting depth: 57 mm
- installation diameter: 68 mm
- outer dimensions: 82 x 82 mm
- not dimmable
Technical Data
| BAR code: | 4012094494005 |
|---|---|
| Width: | 82 mm |
| Length: | 82 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 68 mm |
| Booformat eckig: | Yes |
| Lumen per fixture (lm): | 14 lm |
| Lumen per LED (lm): | 0,00 lm |
| Installation depth: | 57 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 14 |
| IP protection rating: | 20 |
| Power: | 1 W |
| CRI: | 80 |
| Catalog color code: | edelstahl |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Voltage: | 230 V |
| Anzahl led: | 1 |
| Gehaeuse code: | Edelstahl |
| Auslaufartikel: | Yes |
| L70: | 30000 |
| LebensdauerL70B50: | 30000 |
| Ecodesign: | not relevant |
| Service life L90B10: | 16000 |
