Product number:
79915
Vergossener LED-Strip,230V,8W/m,IP65,3000K
Product information "Vergossener LED-Strip,230V,8W/m,IP65,3000K"
- Construction site lighting in LED strip design
- for outdoor use, IP65
- UV-resistant
- number of LEDs: 1850
- LED pitch: 13.51 mm
- beam angle: 120°
- CRI: >80
- luminous flux per meter: 795 lm
- voltage: 230 V AC
- power per meter: 8 W
- energy efficiency class: E
- lifetime L70B50: >= 50,000 h
- LxWxH in mm: 25.000 x 11.3 x 8
- Attention: Only operate the LED strip when completely unrolled
- Maximum length per connection: 25 meter

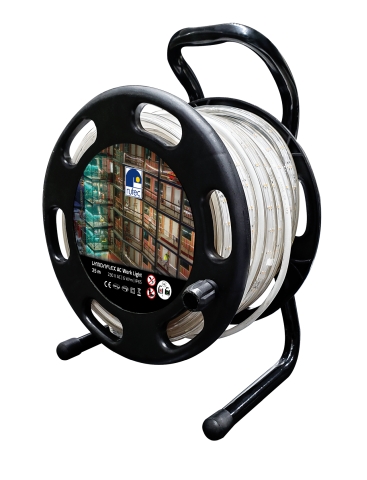

- Scope of delivery: 25 metre roll wound onto a drum with 1.6 m connection cable and contour plug
- Suitable for use on construction sites in accordance with DGUV-I 203-005,K2 + DGUV-I 203-006
Technical Data
| BAR code: | 4012094799155 |
|---|---|
| Width: | 11 mm |
| Height: | 8 mm |
| Length: | 25000 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 19875 lm |
| Lumen per LED (lm): | 10,74 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 74 |
| Power W/m: | 8 |
| Lumen per meter: | 795 |
| Lumen per watt: | 99,38 |
| IP protection rating: | 65 |
| Power: | 200 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 120 Grad ° |
| Voltage: | 230 V |
| Anzahl led: | 1850 |
| Gehaeuse code: | Kunststoff |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,0 |
| Service life L90B10: | 28000 |
