Product number:
74945

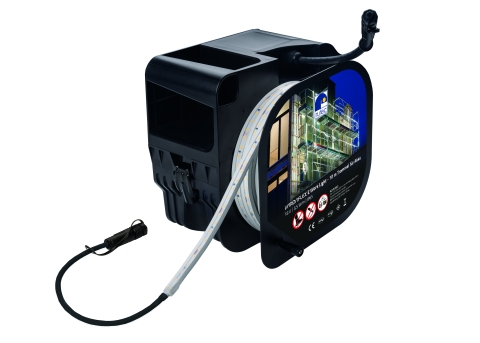

Vergossener LED-Strip,18V,5,5W/m,IP65,3000K,CRI80
Product information "Vergossener LED-Strip,18V,5,5W/m,IP65,3000K,CRI80"
- Construction site lighting in LED strip design with battery operation with deep discharge function
- for indoor and outdoor use, IP65
- UV-resistant
- number of LEDs: 800
- LED pitch: 12.5 mm
- beam angle: 90°
- CRI: >80
- luminous flux per meter: 685 lm
- operating voltage: 18 V battery
- power per meter: 5.5 W
- energy efficiency class: D
- lifetime L70B50: >= 60,000 h

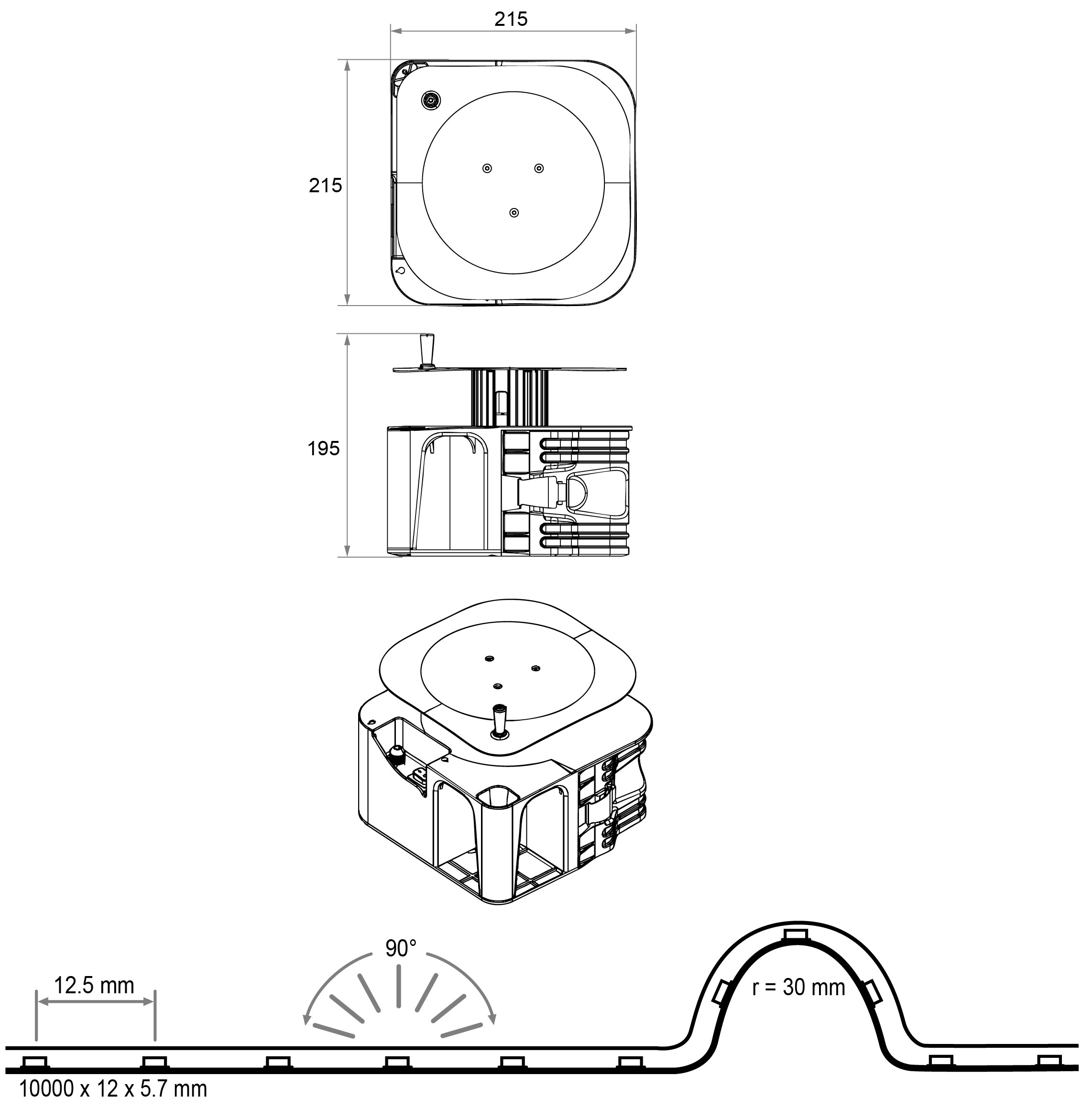

- Drum LxWxH in mm: 215 x 215 x 195
- LED strip LxWxH in mm: 10,000 x 12 x 5.7
- Attention: Only operate LED strip when completely unrolled
- Maximum length per connection: 10 meter
- Scope of delivery: 10 meter roll wound onto a drum with battery adapter plate for Makita 18V battery
- (Battery not included)
- Seperate accessories available: Item no.: 74940 Adapter plate for DeWalt and Milwaukee 18V battery
- Item no.: 74941 Adapter plate for Bosch Professional 18V battery;
- Item no.: 74942 Adapter plate for CONEL 18V battery
- Item no.: 74945LED Replacement LED strip 3000 K
- Suitable for use on construction sites in accordance with DGUV-I 203-005,K2 + DGUV-I 203-006
Technical Data
| BAR code: | 4012094749457 |
|---|---|
| Width: | 215 mm |
| Height: | 195 mm |
| Length: | 215 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Lumen per fixture (lm): | 6850 lm |
| Lumen per LED (lm): | 8,56 lm |
| Current: | 3055 mA |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 80 |
| Cutting length in mm: | 62,5 mm |
| Power W/m: | 5,5 |
| Lumen per meter: | 685 |
| Lumen per watt: | 124,55 |
| IP protection rating: | 65 |
| Power: | 55 W |
| Energy efficiency class: | EEK-Label_D |
| CRI: | 80 |
| Catalog color code: | schwarz |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 90 Grad ° |
| Voltage: | 18 V |
| Anzahl led: | 800 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 74940,74945LED |
| LebensdauerL70B50: | 60000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 18000 |
