CE
Do not cover with heat insulting materials
Protection class III
RoHS
Without snap ring
Product number:
R5564-V4A
Tulka Edelst.V4Am.Clipver.IP55

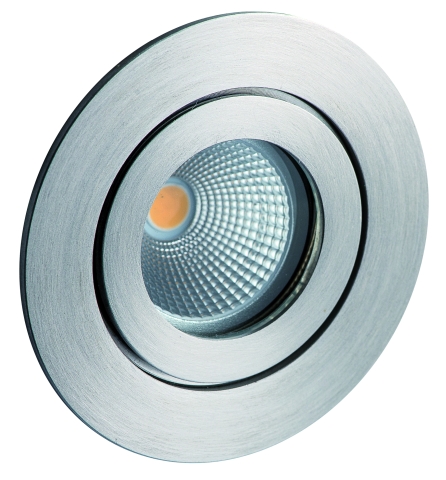

Product information "Tulka Edelst.V4Am.Clipver.IP55"
- Fixed, Without Snap-Ring, IP55 V4A Stainless
- Steel, Round for 35 mm Light Bulb
- Indoor and Outdoor Use Also Usable for Installation In Concrete Ceilings and
- Other Thermally Difficult Mounting Locations. As Well As for Use In Moist Rooms
- and Suitable for Sea Air Areas.
- Housing and Cover Ring Made Out of V4A Stainless Steel.
- Light Bulb Replacement By Removing the Inner Ring (Clip Fastener).
- Tempered Clear Glass with IP55 Protection for Installation in Ceilings.
- Excluding: Light Bulb
- without low-voltage socket art.-no .: 55004 (SKIII)
Technical Data
| BAR code: | 4012094556406 |
|---|---|

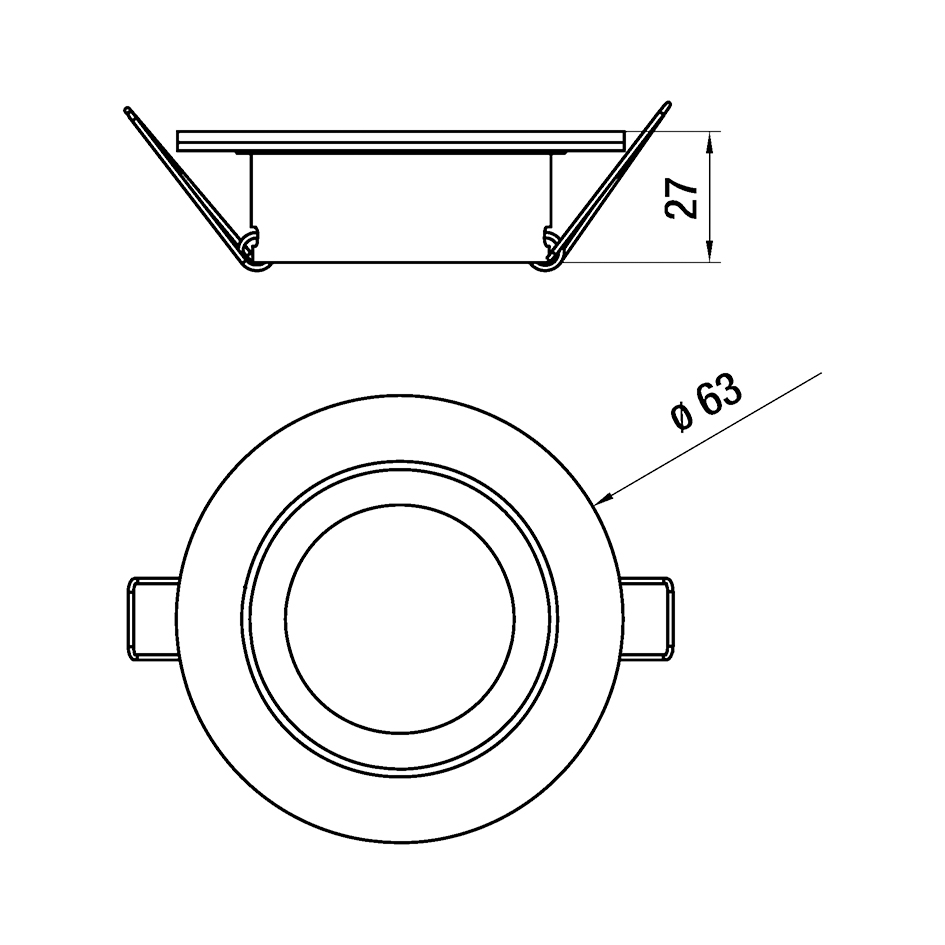

| Height: | 27 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 45 mm |
| Outer diameter: | 63 mm |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -20 - 100 |
| IP protection rating: | 55 |
| Power: | 1-35 W |
| Catalog color code: | edelstahl |
| Leuchte: | without |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Edelstahl |
| Re skus: | 55316,55317,85950,85955 |
| Ecodesign: | not assigned |
