CE
Do not cover with heat insulting materials
Protection class II
Protection class III
RoHS
Without snap ring
Product number:
R5569-1
Tulka Edelst.V4Am.Clipver.IP55 weiss

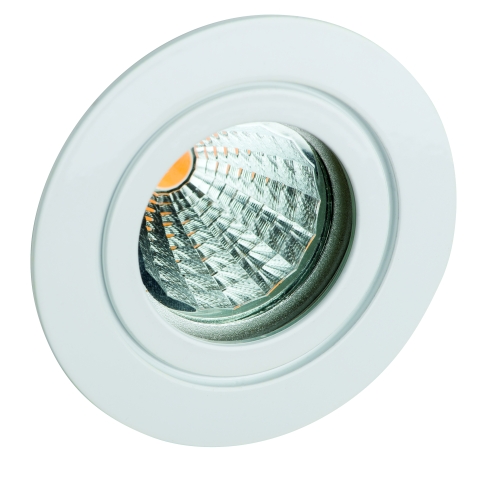

Product information "Tulka Edelst.V4Am.Clipver.IP55 weiss"
- Fixed, Without Snap-Ring, IP55 V4A stainless steel, white
- Round for 50 m m Light Bulb
- Indoor and Outdoor Use Also Usable for Installation In Concrete Ceilings and
- Other Thermally Difficult Mounting Locations. As Well As for Use In Moist Rooms
- and Suitable for Sea Air Areas.
- Housing and Cover Ring Made Out of V4A Stainless Steel.
- Light Bulb Replacement By Removing the Inner Ring (Clip Fastener).
- Tempered Clear Glass with IP55 Protection for Installation in Ceilings.
- Excluding: Light Bulb
- without low-voltage socket art.-no .: 55004 (SKIII)
- without high-voltage version + strain relief item no .: 54995 (SKII)
Technical Data
| BAR code: | 4012094556918 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | ST |

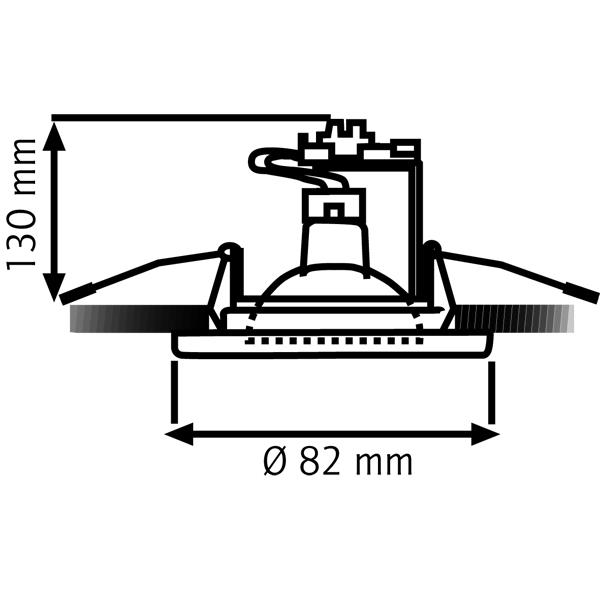

| Installation diameter: | 68 mm |
| Outer diameter: | 82 mm |
| Lumen per LED (lm): | 0,00 lm |
| Temperature range: | -20 - 100 |
| IP protection rating: | 55 |
| Power: | 1-20 W |
| Catalog color code: | weiss |
| Leuchte: | without |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Edelstahl |
| Re skus: | 55316,55317,85444,88816 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
