CE
Disposal instructions according to 2012/19/EU
Interseroh
Parallel connection
Protection class III
REACH
RoHS
UV-resistant
Product number:
SPGF435

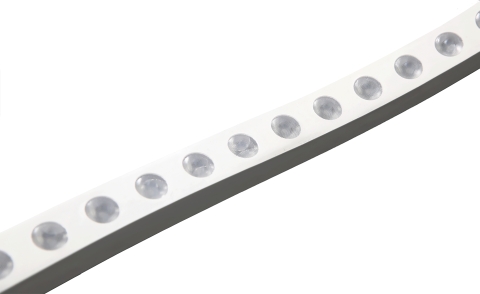

SU-EK LED-Strip,24V,24W/m,RGBW(3000K), 20x40°,W
Product information "SU-EK LED-Strip,24V,24W/m,RGBW(3000K), 20x40°,W"
- Flexible LED Leiste vergossen in UV-, Chlor-, Salzwasser
- Lösungsmittel-, und wärmebeständigem speziellen Silikon
- für die Innen und Außenanwendung, IP67
- alle 250 mm / 7 LEDs teilbar
- Anzahl der LEDs pro Meter: 28
- LED Abstand: 35,71 mm
- Ausstrahlwinkel: 20x40°
- CRI: >80
- Lichtstrom pro Meter: 1240 lm
- Lichtstrom pro Meter 3000K: 508 lm
- Betriebsspannung: 24V DC
- Leistung pro Meter: 24 W
- Lebensdauer L70: >= 36.000 h

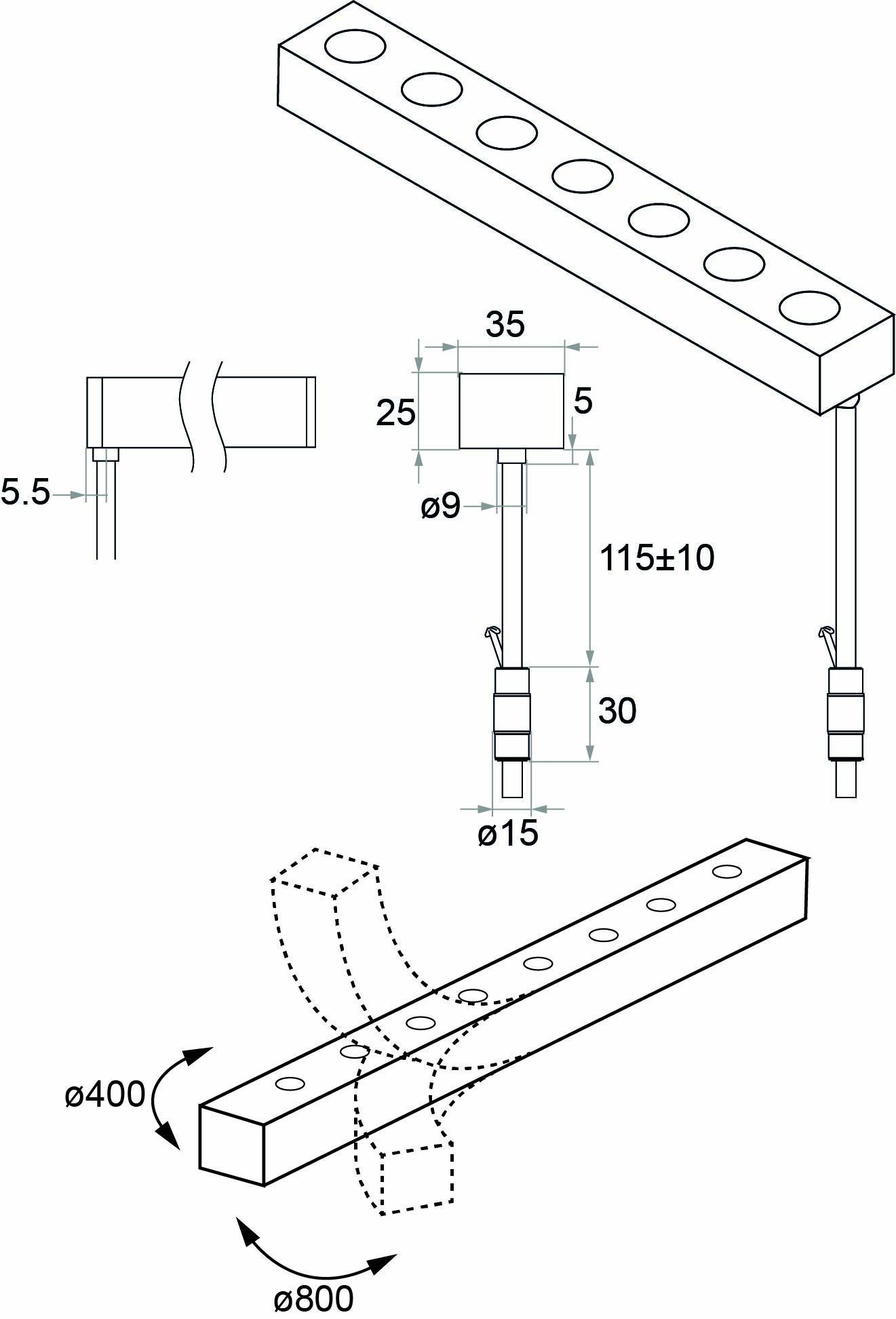

- BxH in mm: 35 x 25
- Temperaturbereich: -40 bis +55° C
- Verarbeitungstemperatur: +10 bis +55° C
- Maximale Länge pro Anschluss: 5 Meter (max. 2 Meter Fertigungslänge)
- Biegedurchmesser horizontal: 800 mm, vertikal: 400 mm
- Wasserstop Duchmesser = 15 mm: Der Wasserstop befindet sich ca. 115 mm entfernt
- von der Einspeisung des LED Strips auf der Zuleitung
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solvent- and heat-resistant special silicone
- for indoor- and outdoor use, IP67
- cuttable every 250 mm / 7 LEDs
- number of LEDs per meter: 28
- LED pitch: 35.71 mm
- beam angle: 20x40°
- CRI: >80
- luminous flux per meter: 1240 lm
- luminous flux per meter 3000K: 508 lm
- voltage: 24V DC
- power per meter: 24 W
- lifespan L70B50: >= 36.000 h
- WxH in mm: 35 x 25
- Temperature range: -40 to +55°C
- Processing temperature: +10 to +55°C
- Maximum length per connection: 5 metres (max. 2 metres production length)
- Bending diameter horizontal: 800 mm, vertical: 400 mm
- anti-wicking ferrule diameter = 15 mm: the anti-wicking ferrule is located at
- 115 mm from the connector on the cable.
Technical Data
| BAR code: | 4251835804356 |
|---|---|
| Width: | 35 mm |
| Height: | 25 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 44,29 lm |
| Temperature range: | -40 - 55 |
| LEDs per meter: | 28 |
| Cutting length in mm: | 250 mm |
| Power W/m: | 24 |
| Lumen per meter: | 1240 |
| Lumen per watt: | 51,67 |
| IP protection rating: | 67 |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGBW 3000K |
| Leuchte: | including LED |
| Beam angle: | 20 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | PFH337 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | light source |
