Product number:
89503

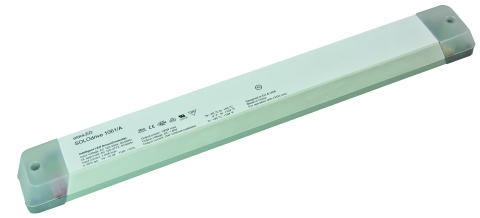

SOLO-DRIVE 100W 230V
Product information "SOLO-DRIVE 100W 230V"
- 230V 4x60V DMX Constant Current Dimmer for Single Color Power LEDs
- Input: 122-277V AC by 230V 0,5A 50Hz max.
- Output: 200-1050mA, max. 60V per Output (4 Outputs),
- Total Maximum 100W
- Power Factor >0,94
- Hybrid Hydra Drive: 15-bit Resolution
- Dimming Control: Smooth Dimming from 100-0% (Choice of Linear or Logarithmic
- Dimming Curve
- Interface for External Control Device: 10k Potentiometer,
- 0-10V Source or Switch
- High Efficiency at Higher Watts and Volts Range: 90% at full load, ? 87% at
- Loads 50W
- ENEC (VDE) Tested
- IEC 61347-1, IEC 61347-2-13, IEC 62384+A1, EN 55015 + A1, EN55022 + A1, IEC
- 61000-3-2, EN61547, IEC 62386-207
- CE
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094895031 |
|---|---|
| Width: | 42 mm |
| Height: | 30 mm |
| Length: | 354 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 200-1050 mA |
| Temperature range: | -40 - 50 |
| IP protection rating: | 20 |
| Power: | 100 W |
| Catalog color code: | weiss |
| Leuchte: | without |
| Voltage: | 220-240 V |
| Input voltage: | 122-277 |
| Gehaeuse code: | Kunststoff |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
