CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86270-V2

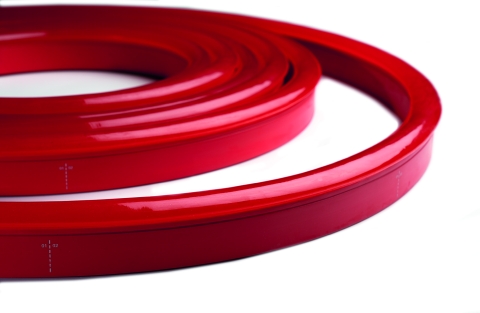

S?-?? Flex.LEDStrip,24V,Rot
Product information "S?-?? Flex.LEDStrip,24V,Rot"
- MOQ 100 m
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solventresistant red PVC
- for indoor- and outdoor use, IP68
- Cuttable every 125 mm / 9 LEDs
- Amount of LEDs per meter: 72
- LED pitch: 13.89 mm
- Beam angle: 160°
- Wavelength: 618 - 624 nm
- Luminous flux per meter: 80 lm
- Voltage: 24V DC
- Power per Meter: 8 W
- Lifetime L70: >= 36.000 h
- Energy efficiency class: C
- WxH in mm: 11.5 x 29
- Temperature range: -10 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 15 meter
- Bending diameter: 120 mm
Technical Data
| BAR code: | 4012094232706 |
|---|---|
| Width: | 11 mm |
| Height: | 29 mm |
| Unit Code: | meter |
| Lumen per LED (lm): | 1,11 lm |
| Temperature range: | -10 - 45 |
| LEDs per meter: | 72 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 8 |
| Lumen per meter: | 80 |
| Lumen per watt: | 10 |
| IP protection rating: | 68 |
| Catalog color code: | rot |
| Led color code: | Rot |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68314,68317,68318 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
