CE
Parallel connection
Protection class III
RoHS
UV-resistant
Product number:
S86230

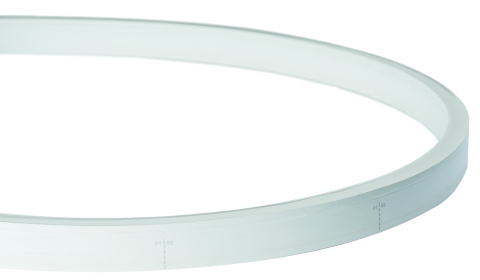

S?-?? Flex.LEDStrip,24V,Rot
Product information "S?-?? Flex.LEDStrip,24V,Rot"
- Flexible LED Stripe sealed in UV-, chlorine-,
- salt water-, solventresistant white PVC
- for indoor- and outdoor use, IP67/68
- Cuttable every 125 mm / 9 LEDs
- Amount of LEDs per meter: 72
- LED pitch: 13.89 mm
- Beam angle: 160°
- CRI: >80
- Luminous flux per meter: 60 lm
- Voltage: 24V DC
- Power per Meter: 3.5 W
- Lifetime L70: >= 36.000 h
- Energy efficiency class: B

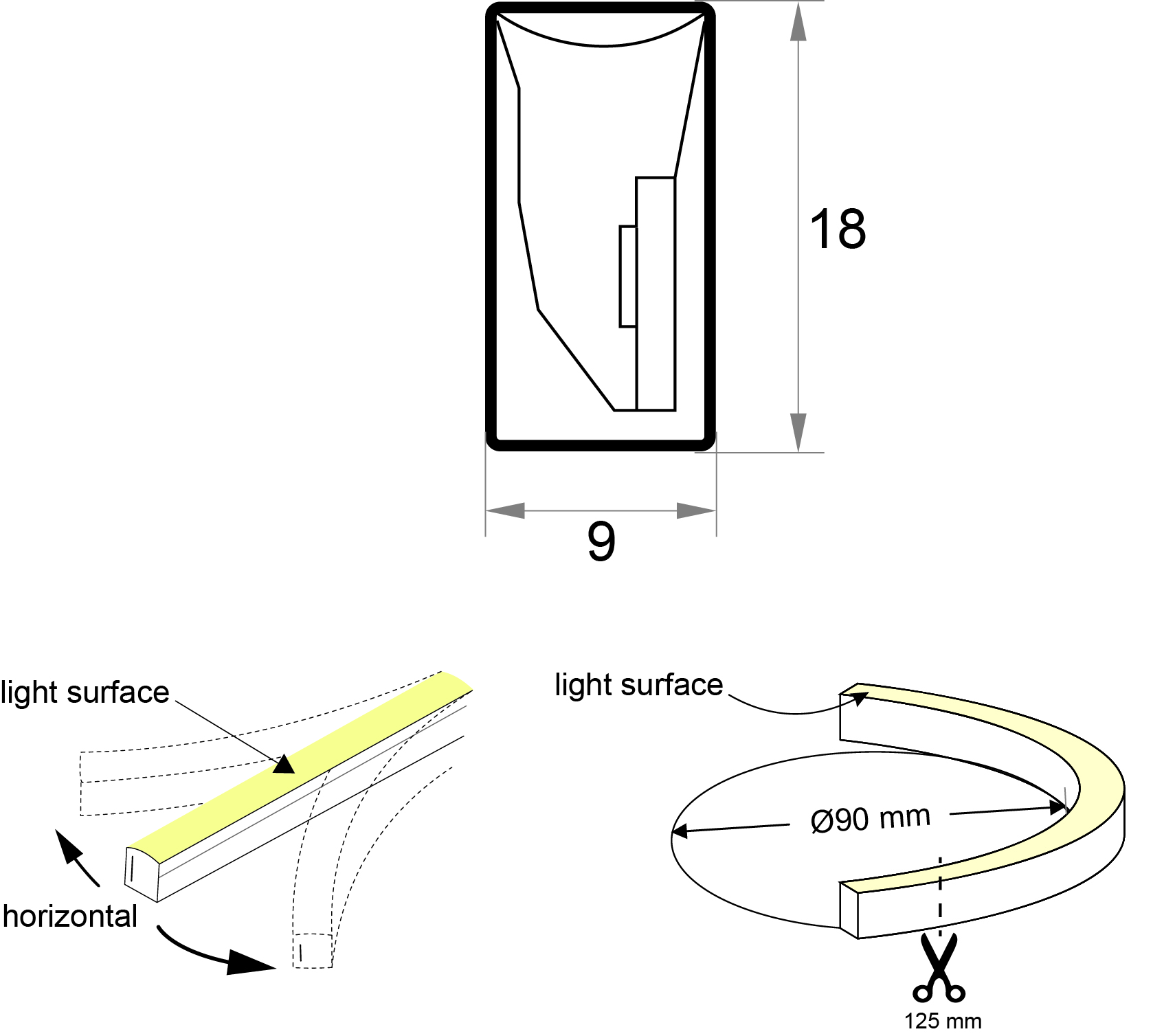

- WxH in mm: 9 x 18
- Temperature range: -20 to +45°C
- Processing temperature: +10 to +45°C
- Maximum length per connection: 15 meter
- Bending radius: 90 mm
- anti-wicking ferrule diameter = 12 mm: the anti-wicking ferrule is located at
- 115 mm from the connector on the cable.
- the anti-wicking ferrule is not included in the rutec Lightdesign version.
Technical Data
| BAR code: | 4012094762302 |
|---|---|
| Width: | 9 mm |
| Height: | 18 mm |
| Unit Code: | meter |
| Customer discount group code: | R2 |
| Lumen per LED (lm): | 0,83 lm |
| Temperature range: | -20 - 45 |
| LEDs per meter: | 72 |
| Cutting length in mm: | 125 mm |
| Power W/m: | 3,5 |
| Lumen per meter: | 60 |
| Lumen per watt: | 12 |
| IP protection rating: | 68 |
| Catalog color code: | weiss |
| Led color code: | Rot |
| Leuchte: | including LED |
| Beam angle: | 160 Grad ° |
| Voltage: | 24 V |
| Gehaeuse code: | Kunststoff |
| Re skus: | 68354,68358 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| LebensdauerL70B50: | 36000 |
| Ecodesign: | not relevant |
