CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Without snap ring
Product number:
45101
QILE - 23,55W IP43 110° 350mA
Product information "QILE - 23,55W IP43 110° 350mA"

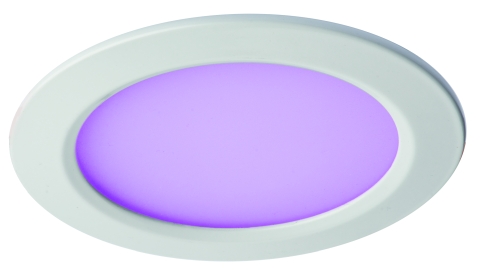

- RGBW LED recessed downlight with diffuse lighting surface
- for indoor use. IP43
- housing: diecast aluminum, plastic diffuser white
- housing color: white
- not swivelling
- beam angle: 110°
- power: 23.55 W (white 6.5 W)
- light color: 3000K + RGB
- luminous flux: 966 lm
- luminous flux 3000K: 560 lm
- CRI: >80
- lifetime: L70B50: >= 50.000 h
- Input current: 350 mA DC
- Installation depth: 96 mm
- Ceiling cut-out: 105 mm
- Outer diameter: 121 mm
- Energie efficiency class: G
- not including LED converter
Technical Data
| BAR code: | 4012094451015 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 105 mm |
| Outer diameter: | 121 mm |
| Lumen per fixture (lm): | 966 lm |
| Lumen per LED (lm): | 26,83 lm |
| Current: | 350 mA |
| Installation depth: | 96 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 41,02 |
| IP protection rating: | 43 |
| Power: | 23,55 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | RGB+WW 3000K |
| Leuchte: | including LED |
| Beam angle: | 110 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 36 |
| Gehaeuse code: | Aluminium |
| L70: | 33000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Service life L90B10: | 46000 |
