CE
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Without snap ring
Product number:
41151

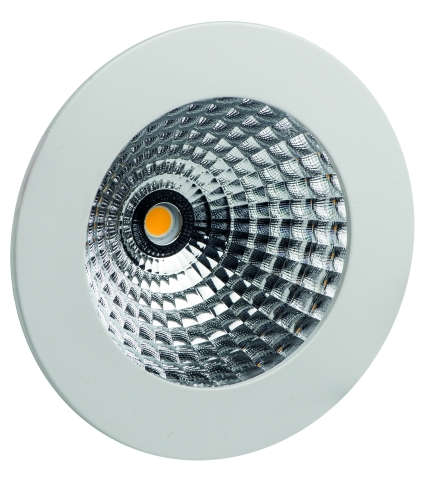

NINQITA LED DL 15W IP40 53° 400mA
Product information "NINQITA LED DL 15W IP40 53° 400mA"
- for indoor use, IP40
- Housing: diecast aluminum (plastic protection cover, transparent)
- housing colour: white
- not swivelling
- beam angle: 53°
- power: 15 W
- light colour: 4000 K ( 100K) neutral white
- luminous flux: 1610 lm
- CRI: >80
- lifespan L70: >= 50.000 h
- input: 400 mA DC
- protection class III
- installation depth: 95 mm
- ceiling cut-out: 125 mm
- outer diameter: 134 mm
- energy efficiency class: A+
- not including LED converter
Technical Data
| BAR code: | 4012094411514 |
|---|---|
| Height: | 85 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Installation diameter: | 125 mm |
| Outer diameter: | 134 mm |
| Lumen per fixture (lm): | 1610 lm |
| Lumen per LED (lm): | 1610,00 lm |
| Current: | 400 mA |
| Installation depth: | 95 mm |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 107,33 |
| IP protection rating: | 40 |
| Power: | 15 W |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 53 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 80790 |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| Ecodesign: | not assigned |
