CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
LED56980UWW

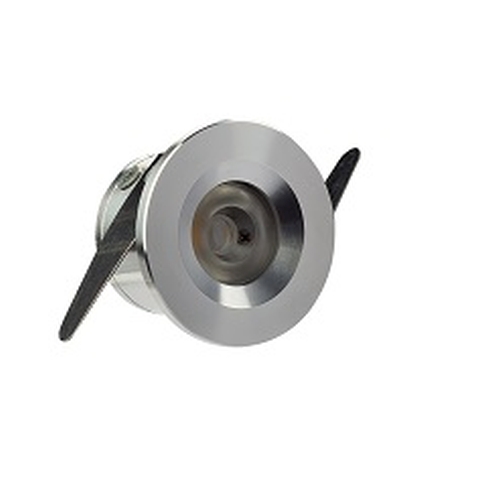

MELIMAR LED Lichtpunkt 1x3,2W UWW
Product information "MELIMAR LED Lichtpunkt 1x3,2W UWW"
- for indoor use, IP 40
- housing: solid aluminum
- housing color: aluminum
- not swivelling
- beam angle: 34°
- power: 3.2 W
- light color: 2700 K
- luminous flux: 313 lm
- CRI: >80
- lifetime L70B50: >= 54.000 h
- input: 350 mA DC
- protection class III
- installation depth: 33 mm
- ceiling cut-out: 34 mm
- outer diameter: 40 mm
- energy efficiency class: F
- not included LED converter
Technical Data
| BAR code: | 4012094559803 |
|---|---|
| Height: | 25 mm |
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 34 mm |
| Outer diameter: | 40 mm |
| Lumen per fixture (lm): | 313 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 33 mm |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 97,81 |
| IP protection rating: | 40 |
| Power: | 3,2 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | aluminium |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 34 Grad ° |
| Sockel code: | ohne |
| Gehaeuse code: | Aluminium |
| Re skus: | 85440 |
| Auslaufartikel: | Yes |
| L70: | 42000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
