CE
Independent converter
Only suitable for indoor installations
Parallel connection
Protection class III
RoHS
Product number:
80492

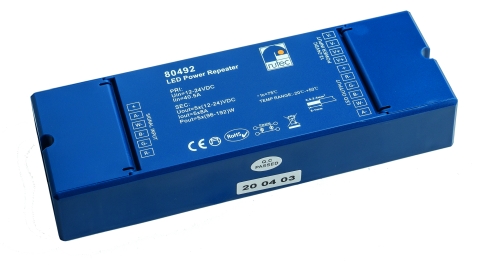

LED Power Repeater 480W/12V 960W/24V
Product information "LED Power Repeater 480W/12V 960W/24V"
- Repeater for PWM signals
- 1, 2, 3, 4 or 5 channels
- 8 A per channel
- for indoor use
- IP20
- Protection class III, CE, RoHS
- Input: 12V DC - 24V DC
- Output: 12 DC - 24V DC
- Power: 5x96 W (12V), 5x192 W (24V)
- LxWxH in mm: 170 x 59 x 28.8 mm
- Temperature range: -20°C to +50°C
Technical Data
| BAR code: | 4012094804927 |
|---|---|
| Width: | 59 mm |
| Height: | 28 mm |
| Length: | 170 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 40000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 480-960 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 80464 |
| Ecodesign: | not assigned |
