CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
88808

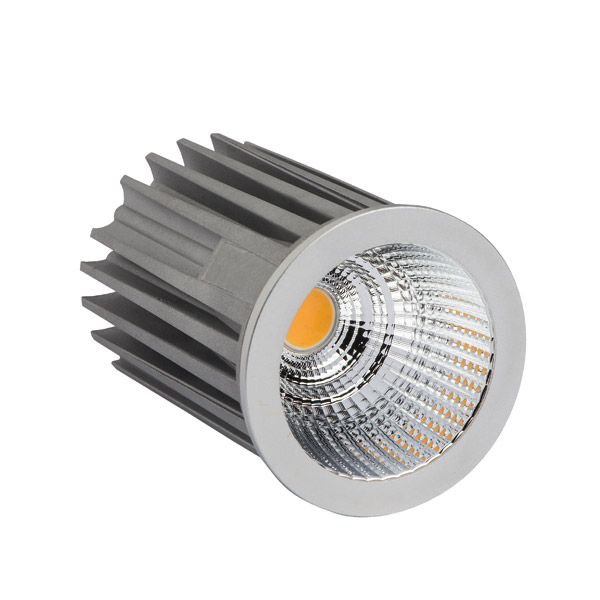

LED POWER MODUL 10W 2700K
Product information "LED POWER MODUL 10W 2700K"
- LED-module 10W
- 50 mm with reflector
- more than 800 lumens
- 1 x power LED array Bridgelux (USA) 10W watts
- dimmable
- Light colours: 2700K, 3000K
- CRI 80 / CRI 90
- Lifetime L70B50: >= 50.000 h
- for operation with constant current converter 350mA
- Excellent heat dissipation due to optimised aluminium heatsink
- Aluminium reflector with halogen apperance and uniform light distribution,
- beam angle 43° and 60°
- energy efficiency class: F
Technical Data
| BAR code: | 4012094888088 |
|---|---|

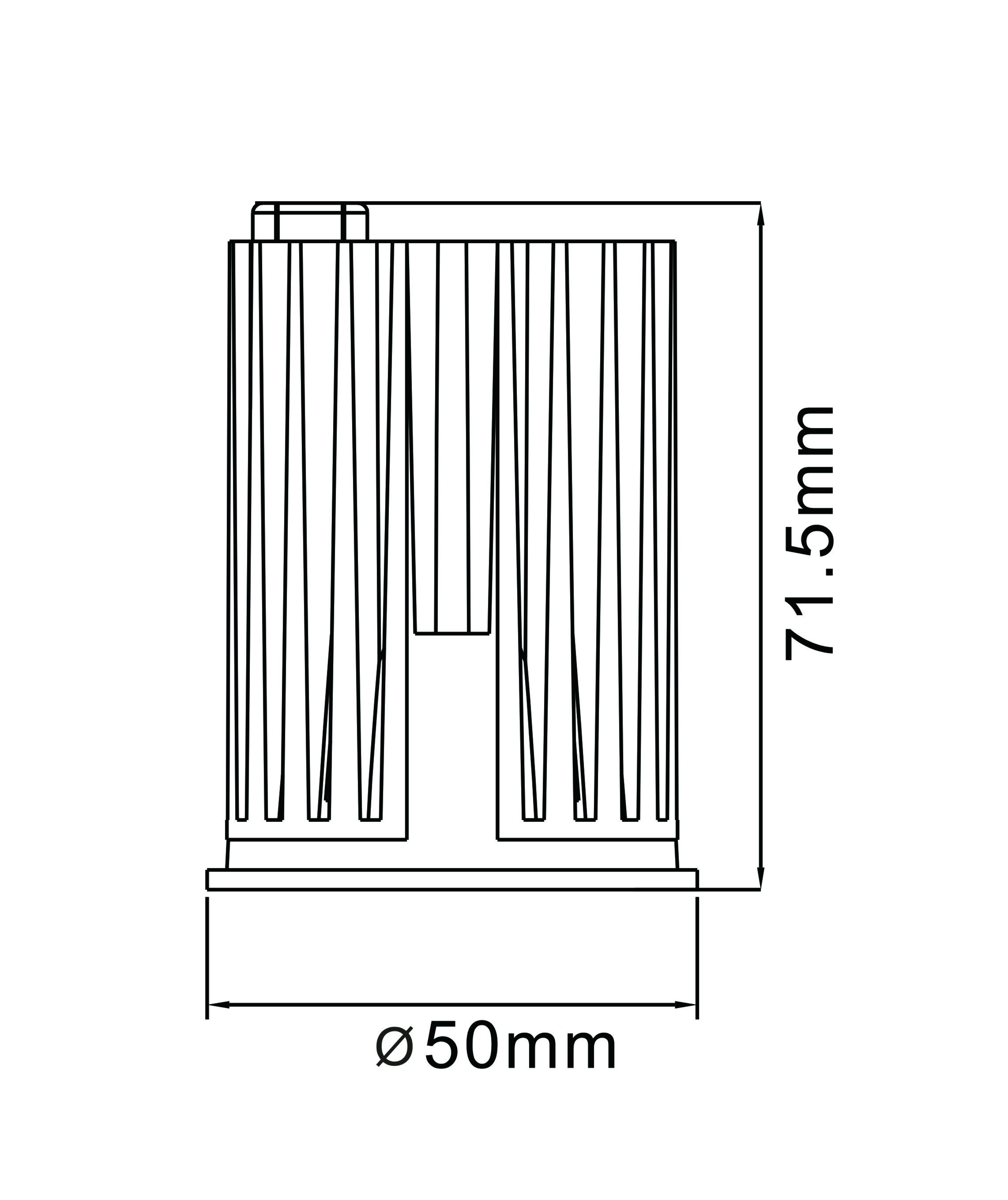

| Length: | 70 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Outer diameter: | 50 mm |
| Lumen per fixture (lm): | 838 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Lumen per watt: | 83,8 |
| IP protection rating: | 20 |
| Power: | 10 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 90 |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 60 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 85443,85446,ALU55371 |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
