CE
Disposal instructions according to 2012/19/EU
Independent converter
Interseroh
Low voltage correction
Parallel connection
Power factor correction
Protection class I
REACH
RoHS
Short circuit protection
UV-resistant
Product number:
87642

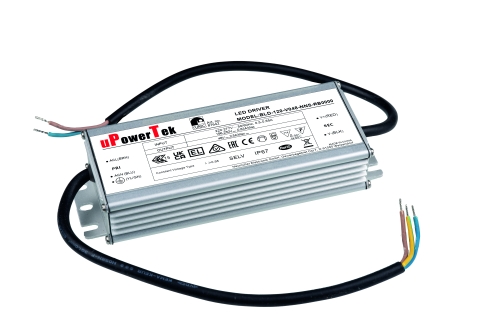

LED Netzgerät 48V 120W IP67 - BLD-120-V048-NNS-RB0000
Product information "LED Netzgerät 48V 120W IP67 - BLD-120-V048-NNS-RB0000"
- LED power supply, constant voltage
- for indoor and outdoor use
- built-in active power factor correction (active PFC)
- protection class I, SELV, CE, REACH, RoHS, ENEC
- protection against short circuit, overload and overtemperature
- primary and secondary sided 1 input and output line
- housing: aluminum
- input voltage: 220-277V AC 50/60 Hz, 186-250V DC (emergency power-compatible)
- power: 120 watt
- output current: 2.5 A
- output voltage: 48 Volt

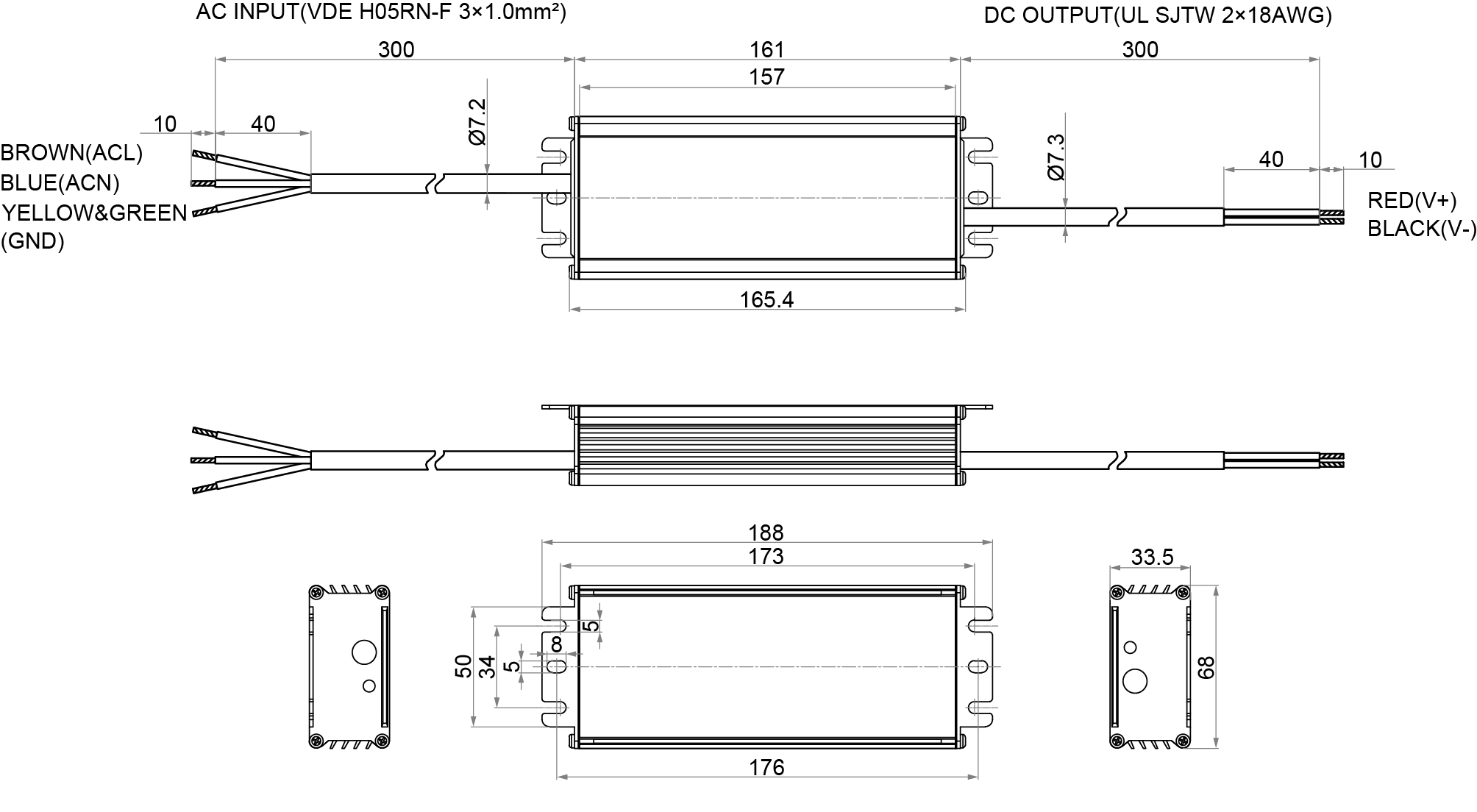

- LxWxH in mm: 188 x 68 x 33.5
- temperature range: -40 to +50°C
- not dimmable on primary side
- not suitable for no load application
Technical Data
| BAR code: | 4012094876429 |
|---|---|
| Width: | 68 mm |
| Height: | 33 mm |
| Length: | 188 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 2500 mA |
| Temperature range: | -40 - 50 |
| IP protection rating: | 67 |
| Power: | 120 W |
| Catalog color code: | aluminium |
| Leuchte: | without |
| Input voltage: | 220-277 |
| Output voltage: | 48 |
| Gehaeuse code: | Aluminium |
| Toleranz: | 3 |
| Leerlauf: | not suitable for no load application |
| Wirkungsgrad Vollast: | 89 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,00 |
| Pno: | 1,00 |
