Product number: 85483

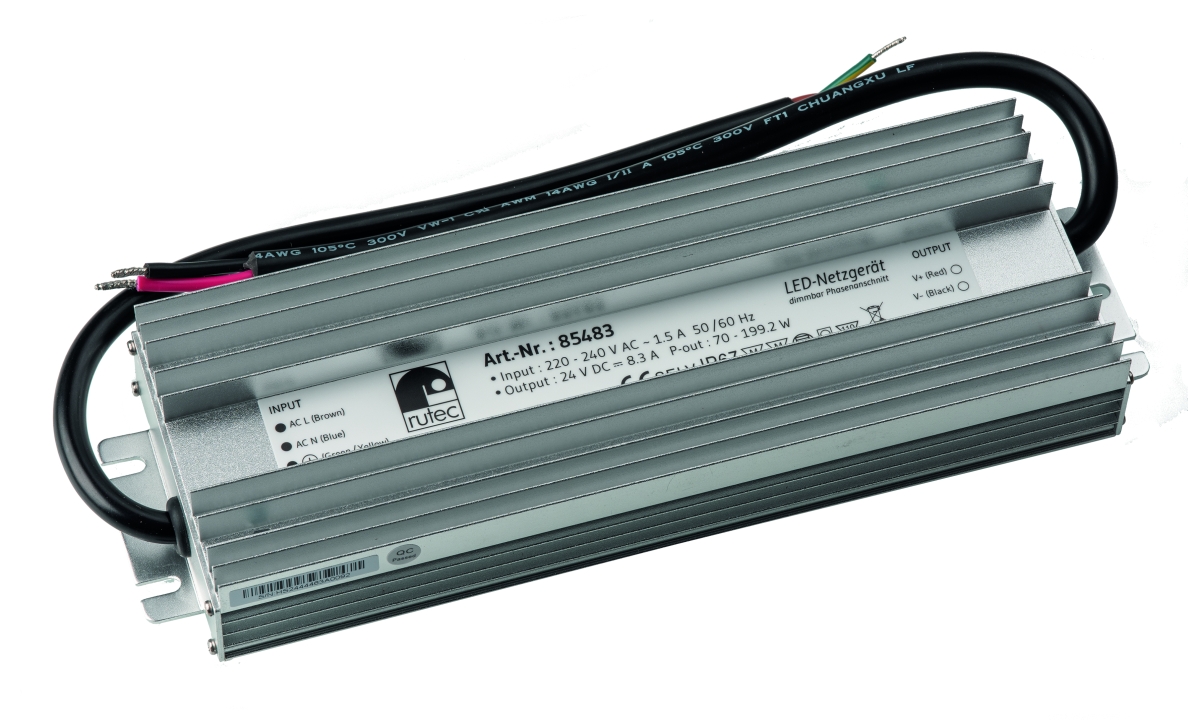

LED Netzgerät 24V 70-199,2W IP67 dimmbar

220-240V AC, Phasenanschnitt

rutec dimmable LED power supply, constant voltage
for indoor and outdoor use, IP67
CE, REACH, RoHS, MM, SELV, active PFC
protection class I
protection against short circuit, overload, overtemperature and overvoltage
primary and secondary sided 1 input and output line approx. 300 mm
housing: aluminum
input voltage: 220-240V AC
Power: 70-199.2 watt
output current: 2.92-8.3 A
output voltage: 24 Volt
LxWxH in mm: 250 x 80.3 x 33.5
temperature range: -30 to +50°C
dimmable on primary side via TRIAC dimmer
depending on the electronics of the phase dimmer, the dimming range may be limited in the
upper and/or lower dimming range (threshold values can be taken from the dimming electronics
used).

BAR code:	4012094854830
Width:	80 mm
Height:	33 mm
Length:	250 mm
Unit Code:	piece
Customer discount group code:	ST
Lumen per LED (lm):	0,00 lm
Current:	2917-8300 mA
Temperature range:	-30 - 50
IP protection rating:	67
Power:	70-199,2 W
Catalog color code:	aluminium
Leuchte:	without
Input voltage:	220-240
Output voltage:	24
Gehaeuse code:	Aluminium
Toleranz:	5
Wirkungsgrad Vollast:	90,5
Geeignete Lichtquelle:	LED
Ecodesign:	seperate control gear
Psb:	0,00
