CE
Disposal instructions according to 2012/19/EU
Independent converter
Interseroh
Low voltage correction
Only suitable for indoor installations
Parallel connection
Protection class II
REACH
RoHS
Short circuit protection
Suitable for furniture installations
Product number:
85272-V2

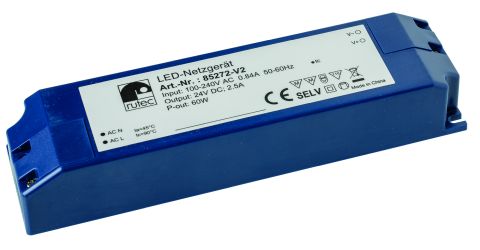

LED-Netzgerät 24V 60W IP20
Product information "LED-Netzgerät 24V 60W IP20"
- rutec LED power supply, constant voltage
- for indoor use, IP20
- with screw connection and strain relief
- CE, REACH, RoHS, MM, SELV
- protection against short circuit, over current and over temperature
- cable cross-section connection terminals: 0.5 - 1.5 sq mm
- housing: plastic
- input voltage: 100-240 V AC
- power: 60 W
- output current: 2.5 A
- output voltage: 24 V DC
- LxWxH in mm: 176 x 46 x 30
- temperature range: -20 to +45°C
- not dimmable on primary side
Technical Data
| BAR code: | 4012094252728 |
|---|---|
| Width: | 46 mm |
| Height: | 30 mm |
| Length: | 176 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 2500 mA |
| Temperature range: | -20 - 45 |
| IP protection rating: | 20 |
| Power: | 60 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Output voltage: | 24 |
| Gehaeuse code: | Kunststoff |
| Toleranz: | 5 |
| Wirkungsgrad Vollast: | 86,5 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,00 |
