LED-Netzgerät 24V 50-120W IP67 dimmbar

220-240V AC, Phasenanschnitt

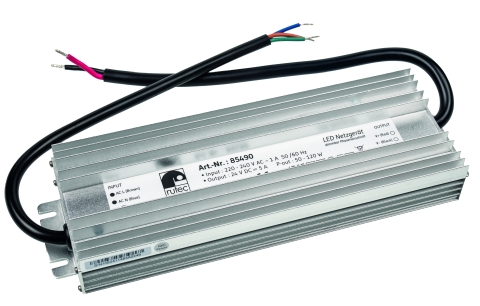

rutec dimmable LED power supply, constant voltage
for indoor and outdoor use
Protection class I, CE, REACH, RoHS, SELV, active PFC
Protection against short circuit, overload, ove voltage and over temperature
Primary and secondary sided 1 input and output line
Housing: aluminium
Input voltage: 220-240V AC
Power: 50-120 watt
output current: 2.08-5.0 A
output voltage: 24 Volt

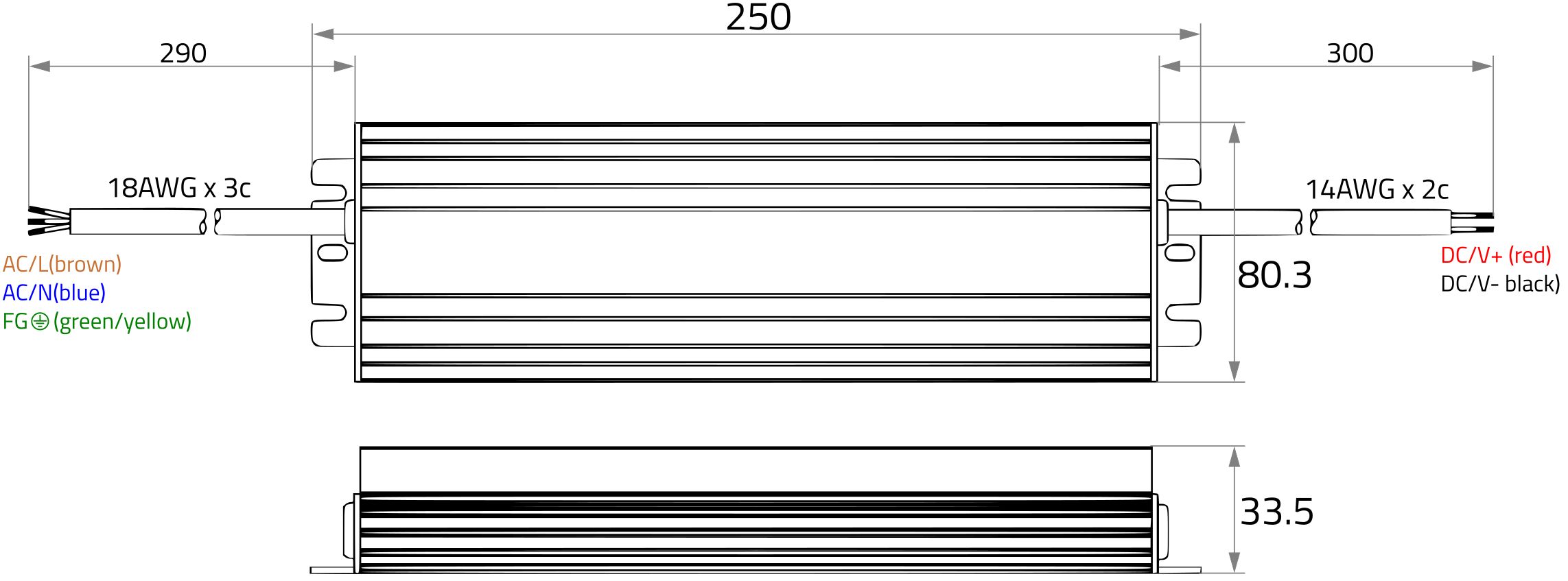

LxWxH in mm: 250 x 80.3 x 33.5
temperature range: -20 to +50°C
dimmable on primary side via TRIAC dimmer
depending on the electronics of the phase dimmer, the dimming range may be limited in the
upper and/or lower dimming range (threshold values can be taken from the dimming electronics
used).

BAR code:	4012094854908
Width:	80 mm
Height:	33 mm
Length:	250 mm
Unit Code:	piece
Customer discount group code:	ST
Lumen per LED (lm):	0,00 lm
Current:	2083-5000 mA
Temperature range:	-20 - 50
IP protection rating:	67
Power:	50-120 W
Catalog color code:	aluminium
Leuchte:	without
Input voltage:	220-240
Output voltage:	24
Gehaeuse code:	Aluminium
Toleranz:	5
Leerlauf:	not suitable for no load application
Wirkungsgrad Vollast:	90
Geeignete Lichtquelle:	LED
Ecodesign:	seperate control gear
Psb:	0,00
Pno:	>0,5
