CE
Disposal instructions according to 2012/19/EU
Independent converter
Interseroh
Low voltage correction
Only suitable for indoor installations
Parallel connection
Protection class II
REACH
RoHS
Short circuit protection
Suitable for furniture installations
Product number:
85267

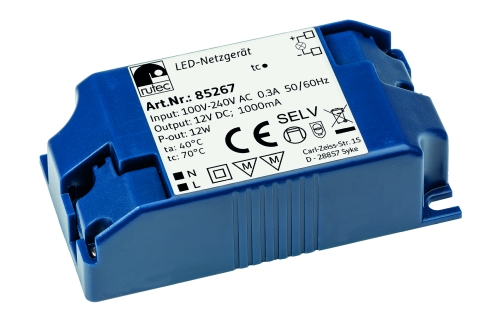

LED-Netzgerät 12V 12W IP20
Product information "LED-Netzgerät 12V 12W IP20"
- rutec LED power supply, constant voltage
- For indoor use, IP20
- with screw connection and strain relief
- CE, REACH, RoHS, MM, SELV
- Protection against short circuit and over current
- Cable cross-section screw terminals: 0.5 - 1.5 sq mm
- Housing: plastic
- Input voltage: 100-240 V AC
- Power: 12 W
- Output current: 1.0 A
- Output voltage: 12 V DC
- LxWxH in mm: 86 x 45 x 26
- Temperature range: -10 to +40°C
- Not dimmable on primary side
Technical Data
| BAR code: | 4012094852676 |
|---|---|
| Width: | 45 mm |
| Height: | 26 mm |
| Length: | 86 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 1000 mA |
| Temperature range: | -10 - 40 |
| IP protection rating: | 20 |
| Power: | 12 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Output voltage: | 12 |
| Gehaeuse code: | Kunststoff |
| Toleranz: | 5 |
| Auslaufartikel: | Yes |
| Wirkungsgrad Vollast: | 81 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,00 |
