CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
88857

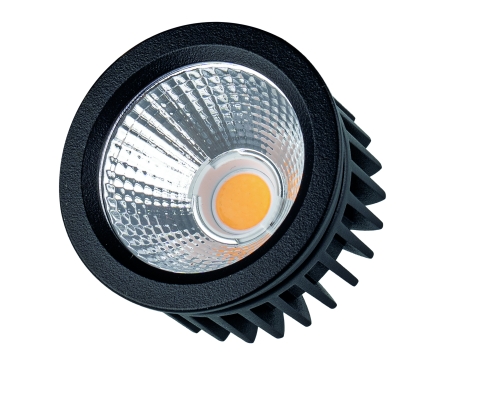

LED-Modul 7W,2700K,MR16
Product information "LED-Modul 7W,2700K,MR16"
- LED module 7W with reflector
- for recessed ceiling spotlights MR16
- dimmable
- input current: 200 mA
- power: 7W
- luminous flux: 910 lm
- CRI: >90
- lifetime L70B50: >= 100,000 h
- beam angle: 36°
- protection class III
- energy efficiency class: D
- Very good heat dissipation thanks to optimised aluminium heat sink
- Aluminium reflector with halogen optics and uniform light distribution
Technical Data
| BAR code: | 4012094888576 |
|---|---|

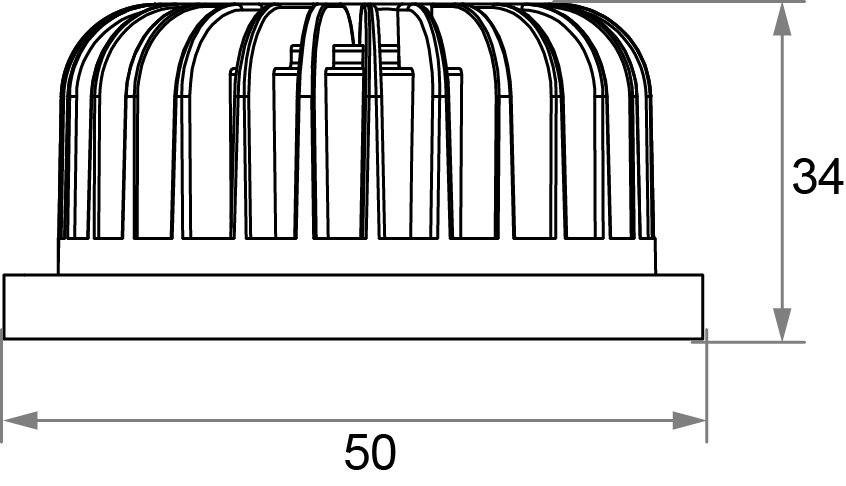

| Height: | 34 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Outer diameter: | 50 mm |
| Lumen per fixture (lm): | 910 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 200 mA |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 130 |
| IP protection rating: | 20 |
| Power: | 7 W |
| Energy efficiency class: | EEK-Label_D |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 36 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 87372,87375 |
| Auslaufartikel: | Yes |
| LebensdauerL70B50: | 100000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 57000 |
