CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
88850

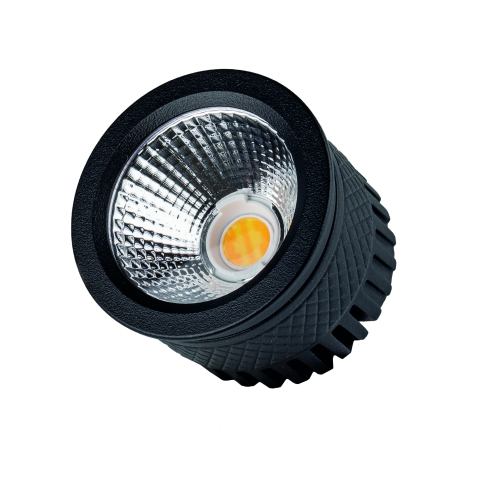

LED-Modul 7W,27/3/4000K,MR16
Product information "LED-Modul 7W,27/3/4000K,MR16"
- LED module 7W with reflector
- for recessed ceiling spotlights MR16
- dimmable
- Three light colours can be changed directly on the module
- input current: 200 mA
- power: 7W
- luminous flux: 740 lm (2700 K), 800 lm (3000 K), 840 lm (4000 K)
- CRI: >90
- lifetime L70B50: >= 100,000 h
- beam angle: 36°
- protection class III
- energy efficiency class: E
- Very good heat dissipation thanks to optimised aluminium heat sink
- Aluminium reflector with halogen optics and uniform light distribution
Technical Data
| BAR code: | 4012094888507 |
|---|---|
| Height: | 40 mm |
| Unit Code: | piece |
| Customer discount group code: | R2 |
| Outer diameter: | 50 mm |
| Lumen per fixture (lm): | 840 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 200 mA |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 120 |
| IP protection rating: | 20 |
| Power: | 7 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | 2700/3000/4000 K umschaltbar |
| Leuchte: | including LED |
| Beam angle: | 36 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 87372,87375 |
| Auslaufartikel: | Yes |
| LebensdauerL70B50: | 100000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 57000 |
