Product number:
88821

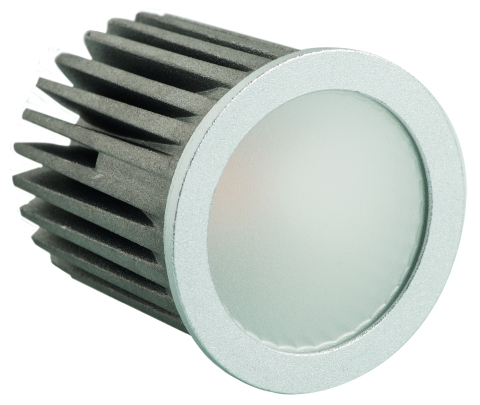

LED-Modul 7W 2200K-3000K
Product information "LED-Modul 7W 2200K-3000K"
- LED-module 7 W, Dim To Warm (DTW)
- with reflector and diffuse front glass
- input current: 350 mA
- power: 7 W
- luminous flux: 528 lm
- light color: 2200 K - 3000 K
- CRI: >95
- lifespan L70B50: >= 50.000 h
- beam angle: 60°
- protection class III
- energy efficiency class: G
- excellent heat dissipation due to optimised aluminum heatsink
- aluminum reflector with halogen appearance and uniform light distribution
Technical Data
| BAR code: | 4012094888217 |
|---|---|
| Height: | 55 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Outer diameter: | 50 mm |
| Lumen per fixture (lm): | 528 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 75,43 |
| IP protection rating: | 20 |
| Power: | 7 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 95 |
| Catalog color code: | aluminium |
| Led color code: | 3000-2200K Dim to Warm |
| Leuchte: | including LED |
| Beam angle: | 60 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 55000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Service life L90B10: | 16000 |
