Product number:
88815

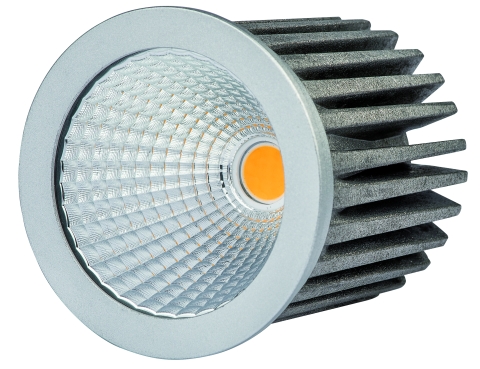

LED-Modul 6,2W 3000K
Product information "LED-Modul 6,2W 3000K"
- LED-module 6.2W with reflector
- Replacement for low voltage halogen 50W
- with Luminus-CXM6 Power LED Array
- dimmable
- Input current: 350 mA
- Power: 6.2W
- Luminous flux: 686 lm
- Light colour: 3000K
- CRI: >90
- Lifetime L70B50: >= 50.000 hours
- Beamangle: 60°
- protection class III
- energy efficiency class: E
- Excellent heat dissipation due to optimised aluminium heatsink
- Aluminium reflector with halogen apperance and uniform light distribution
Technical Data
| BAR code: | 4012094888156 |
|---|---|
| Height: | 55 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Outer diameter: | 50 mm |
| Lumen per fixture (lm): | 686 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 110,65 |
| IP protection rating: | 20 |
| Power: | 6,2 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Catalog color code: | aluminium |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 60 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
