CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
88830
LED-Modul 6,2W 2700K

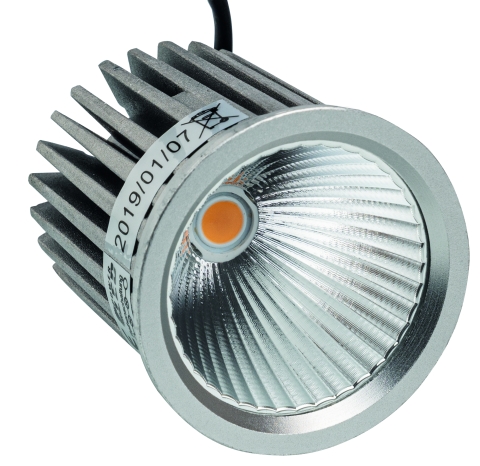

Product information "LED-Modul 6,2W 2700K"
- LED-module 6.2W with reflector
- Replacement for low voltage halogen 50W
- with Luminus-CXM6 Power LED Array
- dimmable
- input current: 350 mA
- power: 6.2W
- luminous flux: 743 lm
- light colour: 2700K
- CRI: >90
- lifespan L70B50: >= 50.000 h
- beam angle: 20°
- protection class III
- energy efficiency class: E
- Excellent heat dissipation due to optimised aluminium heatsink
- Aluminium reflector with halogen apperance and uniform light distribution
Technical Data
| BAR code: | 4012094888309 |
|---|---|
| Height: | 55 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Outer diameter: | 50 mm |
| Lumen per fixture (lm): | 743 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 119,84 |
| IP protection rating: | 20 |
| Power: | 6,2 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 90 |
| Catalog color code: | aluminium |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 20 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Service life L90B10: | 16000 |
