CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
88883-V2

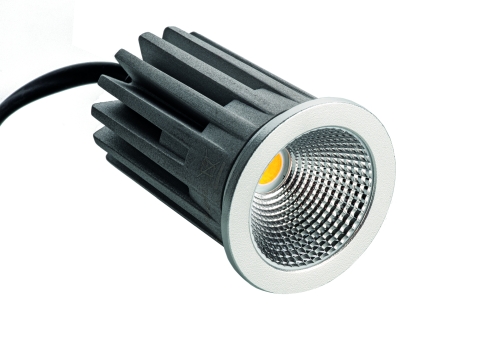

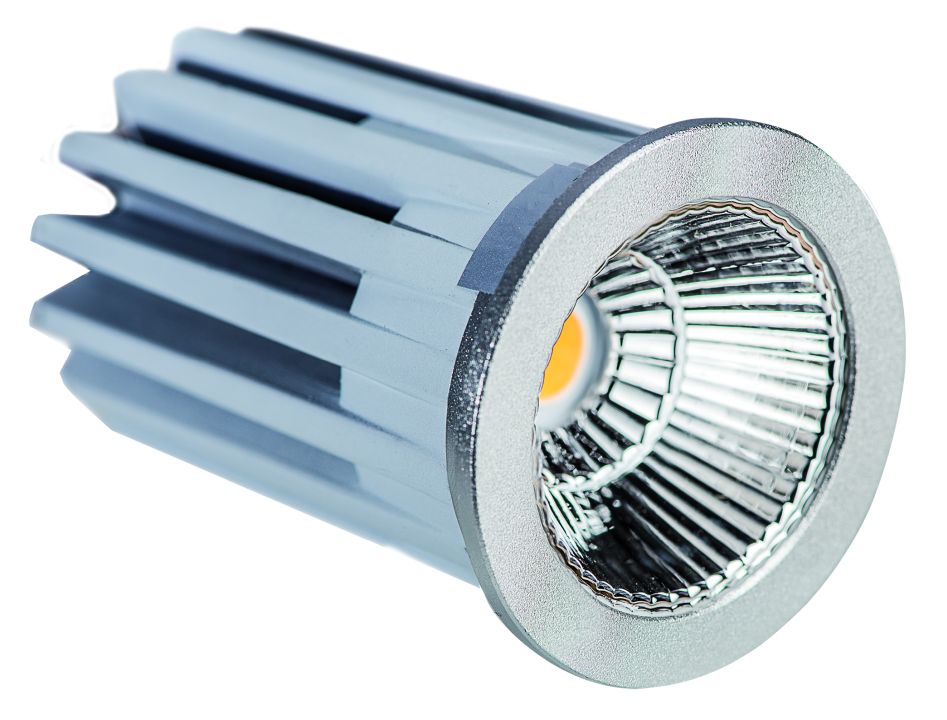

LED-Modul 5,5W WW
Product information "LED-Modul 5,5W WW"
- LED-module 5.5W with reflector
- dimmable
- Light colour: 3000K
- CRI 80
- Lifespan L70B50: >= 50,000 h
- for operation with converter constant current 600 mA
- Excellent heat dissipation due to optimised aluminium heatsink
- Aluminium reflector with halogen appearance and uniform light distribution
- beam angle 40°
- energy efficiency class: E
Technical Data
| BAR code: | 4012094888132 |
|---|---|
| Height: | 55 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Outer diameter: | 35 mm |
| Lumen per fixture (lm): | 662 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 600 mA |
| Installation depth: | 55 mm |
| Temperature range: | -20 - 45 |
| Lumen per watt: | 120,36 |
| IP protection rating: | 20 |
| Power: | 5,5 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Catalog color code: | aluminium |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| L70: | 50000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Psb: | 0,00 |
| Service life L90B10: | 16000 |
