CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
LED55985WW

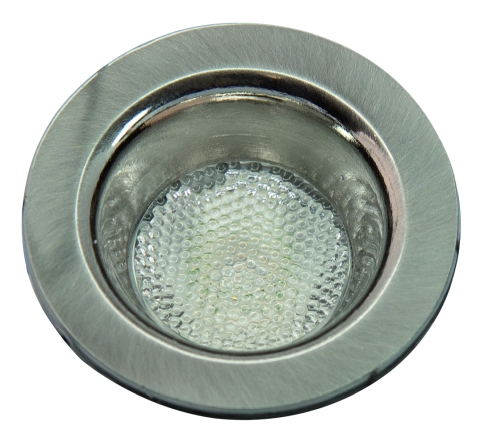

LED Lichtpunkt 1W WW
Product information "LED Lichtpunkt 1W WW"
- for indoor use, IP 40
- housing: diecast aluminum
- housing color: iron brushed
- not swivelling
- beam angle: 40°
- power: 1 W
- light color: 3000 K
- luminous flux: 85 lm
- CRI: >80
- lifetime L70B50: >= 50.000 h
- input: 350 mA DC
- protection class III
- installation depth: 38 mm
- ceiling cut-out: 26 mm
- outer diameter: 35 mm
- energie efficiency class: F
- not included LED converter
Technical Data
| BAR code: | 4012094549859 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 26 mm |
| Outer diameter: | 35 mm |
| Lumen per fixture (lm): | 85 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 38 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 85 |
| IP protection rating: | 40 |
| Power: | 1 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | eisen-gebürstet |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 85439 |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
| Service life L90B10: | 16000 |
