CE
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
LED57861WW

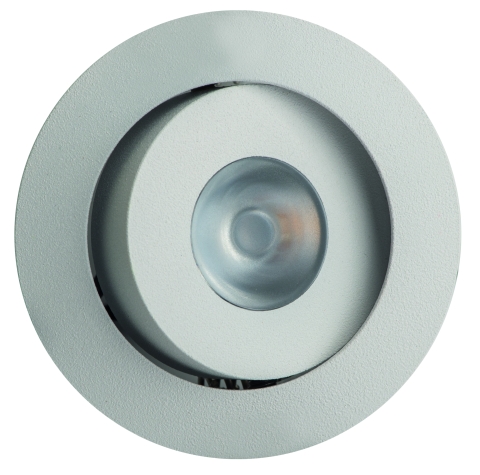

LED Lichtpunkt 1W WW schwenkbar
Product information "LED Lichtpunkt 1W WW schwenkbar"
- for indoor use, IP 20
- housing: diecast aluminum
- housing color: sand white
- swivel
- beam angle: 20°
- power: 1 W
- light color: 3000 K
- luminous flux: 126 lm
- CRI: >80
- lifetime L70: >= 36.000 h
- input: 350 mA DC
- protection class III
- installation depth: 28 mm
- ceiling cut-out: 44 mm
- outer diameter: 52 mm
- energie efficiency class: A++
- not included LED converter
Technical Data
| BAR code: | 4012094578613 |
|---|---|
| Height: | 18 mm |
| Unit Code: | piece |
| Installation diameter: | 44 mm |
| Outer diameter: | 52 mm |
| Lumen per fixture (lm): | 126 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 28 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 126 |
| IP protection rating: | 20 |
| Power: | 1 W |
| CRI: | 80 |
| Catalog color code: | sandweiß |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 20 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 85439 |
| Auslaufartikel: | Yes |
| L70: | 36000 |
| Ecodesign: | not assigned |
