CE
Disposal instructions according to 2012/19/EU
Independent converter
Low voltage correction
Only suitable for indoor installations
Power factor correction
Protection class II
REACH
RoHS
Series connection
Short circuit protection
Suitable for furniture installations
UKCA
Product number:
83445

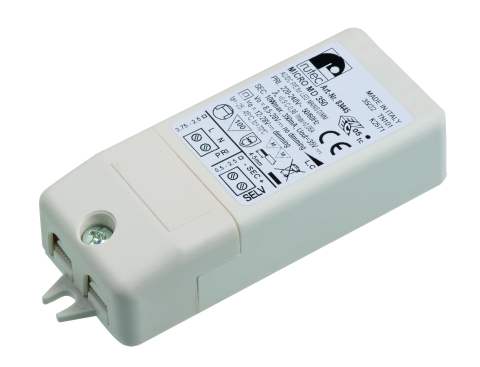

LED-Konverter Micro MD 350mA 4,2-9,8W, PFC 0,96
Product information "LED-Konverter Micro MD 350mA 4,2-9,8W, PFC 0,96"
- rutec dimmable LED constant current converter
- for indoor use, IP20
- built-in active power factor correction (active PFC)
- protection class II, CE, RoHS, MM, SELV
- protection against short-cicuit, overload, overvoltage, thermal protection
- cable cross-section on primary side: 0.75 - 2.5 sqmm
- cable cross-section on secondary side: 0.5 - 2.5 sqmm
- with strain relief cover
- dimmable with trailing edge dimmer
- housing: plastic
- input voltage: 220-240V AC 50/60 Hz
- input voltage: 198-264V DC
- output current: 350 mA
- power without dimming: 3 - 9.8 W
- power with dimming: 4.2 - 9.8 W
- inrush current: 2A (50 microsec.)

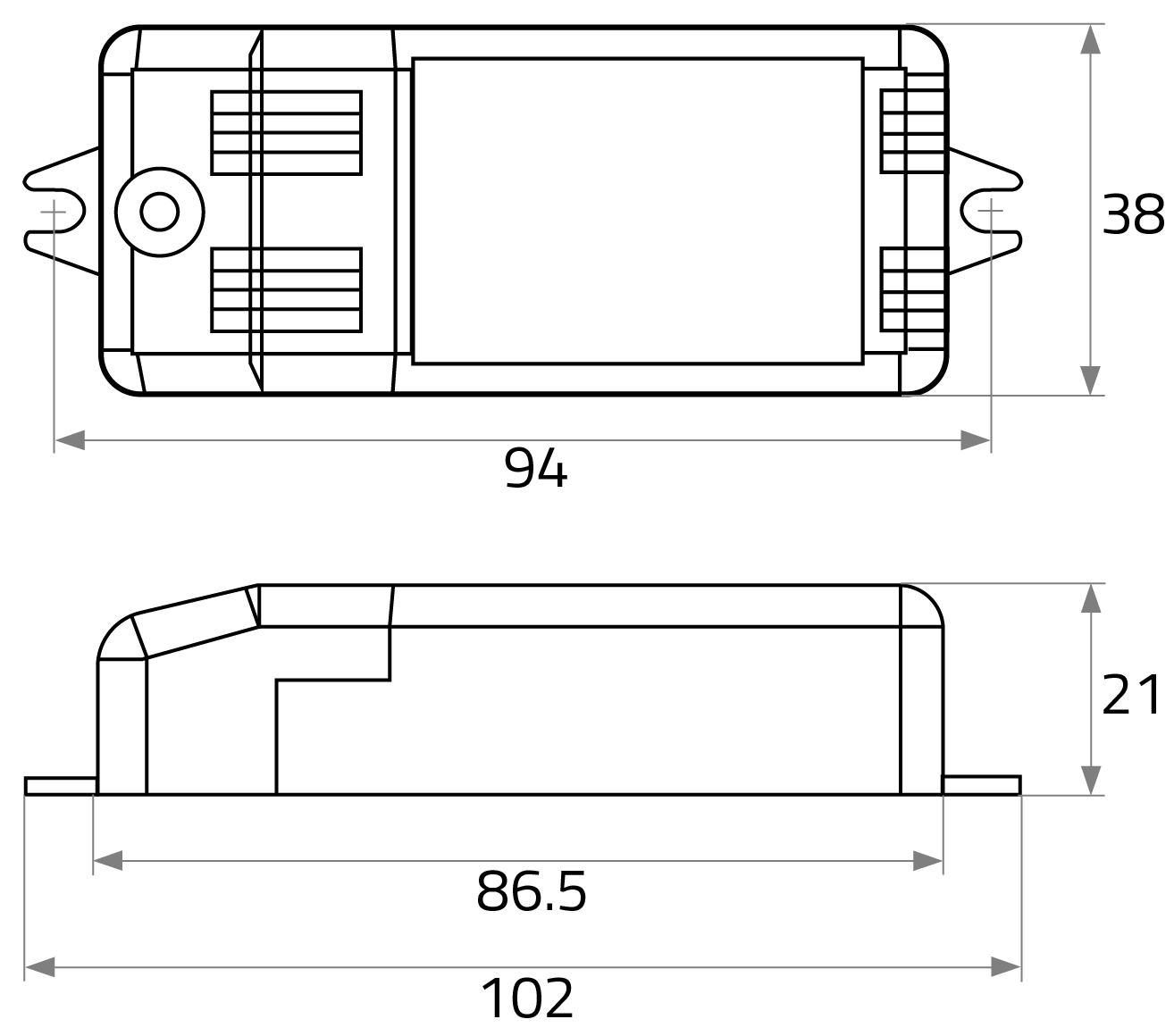

- LxWxH in mm: 102 x 38 x 21
Technical Data
| BAR code: | 4012094834450 |
|---|---|
| Width: | 38 mm |
| Height: | 21 mm |
| Length: | 102 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -25 - 45 |
| IP protection rating: | 20 |
| Power: | 3-9,8 W |
| Catalog color code: | weiss |
| Leuchte: | without |
| Input voltage: | 220-240 |
| Output voltage: | 8,5-28 |
| Gehaeuse code: | Kunststoff |
| Toleranz: | 8 |
| Leerlauf: | not suitable for no load application |
| Wirkungsgrad Vollast: | 82 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,00 |
| Pno: | >0,5 |
