CE
F
Independent converter
Power factor correction
Protection class I
RoHS
Short circuit protection
TÜV Rheinland approved
Product number:
87439

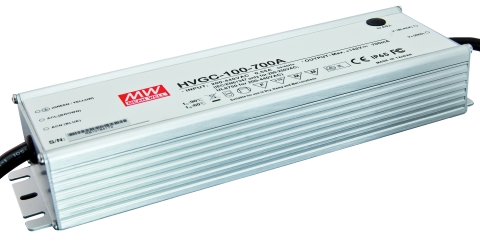

LED Konverter 700mA 59W-99W
Product information "LED Konverter 700mA 59W-99W"
- Mean Well LED Constant Current Converter HVGSeries
- for Indoor Use
- IP65
- Protection Class II, CE
- Protection Against Short Circuit, Overload and Power Surges
- Protection Against Thermal Overload
- Safety Standards: Produced in Accordance with EN61347-2-13, EN 61347-1, EN60950-
- 1
- Built-in Power Factor Correction (PFC)
- EMV: Produced in Accordance with EN55015 EN61000-3-2 class C, EN61000-3-3,
- EN61000-4-2,3,4,5,6,8,11, EN61547
- Primary and Secondary Side, One Connection Input and Connection Output
- Housing Aluminum
- Temperature Range: -40 to +70°C
- Tolerance: 1%
- Not Suitable for the Melimar Series
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094874395 |
|---|---|
| Width: | 68 mm |
| Height: | 38 mm |
| Length: | 236 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 700 mA |
| Temperature range: | -40 - 70 |
| IP protection rating: | 65 |
| Power: | 1-99 W |
| Catalog color code: | weiss |
| Leuchte: | without |
| Input voltage: | 200-440 |
| Output voltage: | 142 |
| Gehaeuse code: | Aluminium |
| Toleranz: | 1 |
| Effizienz: | 92 |
| Auslaufartikel: | Yes |
| Ecodesign: | not assigned |
