CE
Disposal instructions according to 2012/19/EU
Independent converter
Low voltage correction
Only suitable for indoor installations
Protection class II
RoHS
Series connection
Short circuit protection
Suitable for furniture installations
Product number:
PHE951

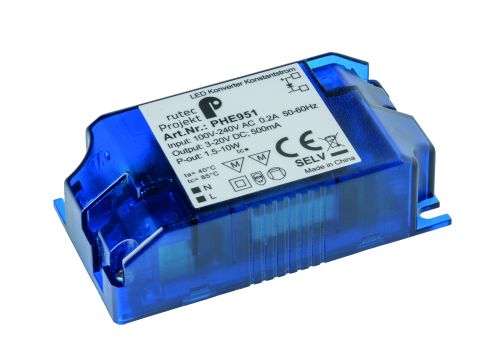

LED Konverter 500mA 1,5-10W
Product information "LED Konverter 500mA 1,5-10W"
- rutec LED converter, constant current
- for indoor use, IP20
- with screw connection and strain relief
- CE, REACH, RoHS, MM, SELV
- protection against short circuit
- cable cross-section screw terminals: 0.5 - 1.5 sq mm
- housing: plastic
- input voltage: 100-240 V AC
- power: 1.5 - 10 W
- output current: 500 mA
- LxWxH in mm: 86 x 45 x 26
- temperature range: -10 to +40°C
- not dimmable on primary side
Technical Data
| BAR code: | 4251835859516 |
|---|---|
| Width: | 45 mm |
| Height: | 26 mm |
| Length: | 86 mm |
| Unit Code: | piece |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 500 mA |
| Temperature range: | -10 - 40 |
| IP protection rating: | 20 |
| Power: | 1,5-10 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Output voltage: | 3-20 |
| Gehaeuse code: | Kunststoff |
| Toleranz: | 5 |
| Auslaufartikel: | Yes |
| Wirkungsgrad Vollast: | 80 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,0 |
| Pno: | 0,38 |
