CE
Disposal instructions according to 2012/19/EU
Independent converter
Low voltage correction
Only suitable for indoor installations
Protection class II
REACH
RoHS
Series connection
Short circuit protection
Suitable for furniture installations
Product number:
85444

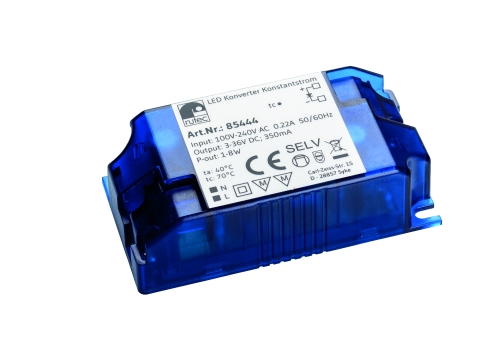

LED Konverter 350mA 1W-8W 3-36V
Product information "LED Konverter 350mA 1W-8W 3-36V"
- rutec LED converter, constant current
- For indoor use, IP20
- with screw connection and strain relief
- CE, REACH, RoHS, MM, SELV
- Protection against short circuit and over current
- Cable cross-section screw terminals: 0.5 - 1.5 sq mm
- Housing: plastic
- Input voltage: 100-240 V AC
- Power: 1 - 8 W
- Output current: 350 mA
- LxWxH in mm: 86 x 45 x 26
- Temperature range: -10 to +40°C
- Not dimmable on primary side
Technical Data
| BAR code: | 4012094084442 |
|---|---|
| Width: | 45 mm |
| Height: | 26 mm |
| Length: | 86 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Temperature range: | -10 - 40 |
| IP protection rating: | 20 |
| Power: | 1-8 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 100-240 |
| Output voltage: | 3-36 |
| Gehaeuse code: | Kunststoff |
| Toleranz: | 6 |
| Leerlauf: | not suitable for no load application |
| Wirkungsgrad Vollast: | 75 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
| Psb: | 0,00 |
| Pno: | 1,00 |
