Product number:
87375

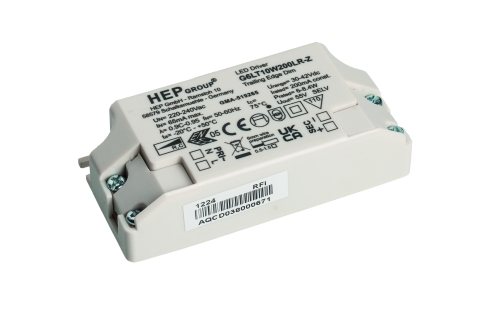

LED Konverter 200mA 6W-8,4W 30-42V
Product information "LED Konverter 200mA 6W-8,4W 30-42V"
- LED converter, constant current-dimmable
- for indoor use, IP20
- with screw connection and strain relief
- CE, REACH, RoHS, SELV
- Protection against short circuit, over temperature and overload
- Primary cable cross-section: 0.75-1.5 sqmm
- Secondary cable cross-section: 0.5-1.5 sqmm
- Housing: plastic
- Input voltage: 220-240 V AC
- Power: 6-8.4 watts
- Ouput current: 200 mA
- LxWxH in mm: 85 x 41 x 22
- Temperature range: -20 to +50°C
- Primary side dimmable with trailing edge dimmer
Technical Data
| BAR code: | 4012094873756 |
|---|---|
| Width: | 41 mm |
| Height: | 22 mm |
| Length: | 85 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 200 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 6-8,4 W |
| Catalog color code: | weiss |
| Leuchte: | without |
| Input voltage: | 220-240 |
| Output voltage: | 30-42 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 88850,88860,88865,88867 |
| Wirkungsgrad Vollast: | 90 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
