CE
Disposal instructions according to 2012/19/EU
Independent converter
Low voltage correction
Only suitable for indoor installations
Protection class II
REACH
RoHS
Series connection
Short circuit protection
Product number:
87372

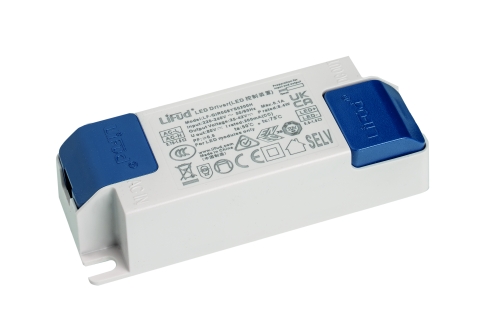

LED Konverter 200mA 5W-8,4W 25-42V
Product information "LED Konverter 200mA 5W-8,4W 25-42V"
- LED converter, constant current
- for indoor use, IP20
- with terminal connection and strain relief
- CE, REACH, RoHS, SELV
- Protection against short circuit
- Primary cable cross-section: 0.75-1.5 sqmm
- Secondary cable cross-section: 0.5-1.5 sqmm
- Housing: plastic
- Input voltage: 220-240 V AC
- Power: 5-7.2 watts
- Ouput current: 200 mA
- LxWxH in mm: 96 x 36 x 24
- Temperature range: -30 to +50°C
- Primary side not dimmable
Technical Data
| BAR code: | 4012094873725 |
|---|---|
| Width: | 36 mm |
| Height: | 24 mm |
| Length: | 96 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 200 mA |
| Temperature range: | -30 - 50 |
| IP protection rating: | 20 |
| Power: | 5-8,4 W |
| Catalog color code: | weiss |
| Leuchte: | without |
| Input voltage: | 220-240 |
| Output voltage: | 25-42 |
| Gehaeuse code: | Kunststoff |
| Re skus: | 88850,88860,88865,88867 |
| Wirkungsgrad Vollast: | 79 |
| Geeignete Lichtquelle: | LED |
| Ecodesign: | seperate control gear |
