CE
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Product number:
ALU58482UWWOK
LED Fokus Einbaustr.6,9W schwarz o.Konv.

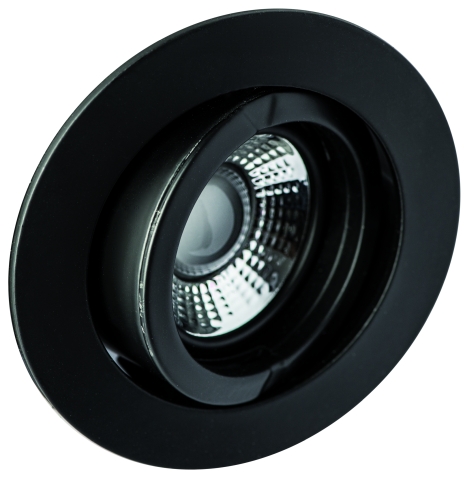

Product information "LED Fokus Einbaustr.6,9W schwarz o.Konv."
- for indoor use, IP20
- Housing: diecast aluminum
- Housing colour: black
- swivel
- Beam angle: focusable 15 - 45°
- Power: 6,9 W
- Light colour: 2700 K
- Light flux: 570 lm
- CRI: >80
- Lifespan L70: >= 42.000 h
- Input current: 700 mA DC
- protection class III

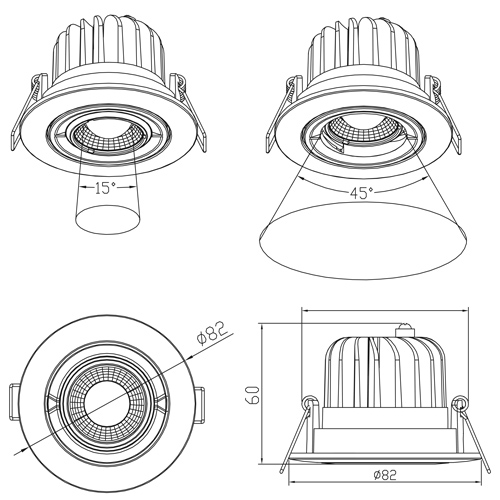

- Installation depth: 70 mm
- Ceiling cut-out: 68 mm
- Outer diameter: 82 mm
- Energie efficiency class: A+
- not including LED converter
Technical Data
| BAR code: | 4012094584829 |
|---|---|
| Height: | 60 mm |
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 68 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 570 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 700 mA |
| Installation depth: | 70 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 82,61 |
| IP protection rating: | 20 |
| Power: | 6,9 W |
| CRI: | 80 |
| Catalog color code: | schwarz |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 15-45 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 80790,85430 |
| Auslaufartikel: | Yes |
| L70: | 42000 |
| Ecodesign: | not assigned |
