CE
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Without snap ring
Product number:
ALU57681UWWOK

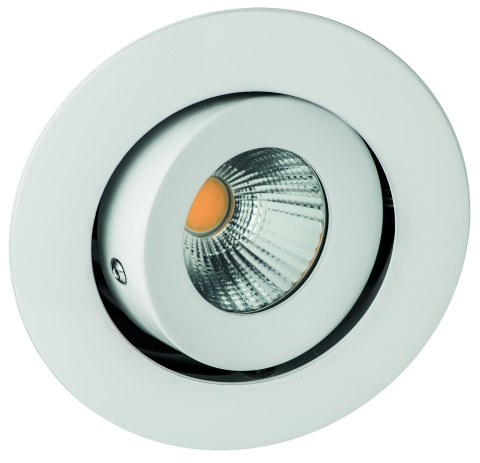

LED Einbaustr. 8W weiss o.Konv.
Product information "LED Einbaustr. 8W weiss o.Konv."
- for indoor use, IP20
- housing: diecast aluminum, glass reflector, protection glass
- cardanic mounting-steel
- housing color: white
- 40° swivel and 360° rotating
- beam angle: 25°
- power: 8 W
- light color: 2700K ( 100K)
- luminous flux: 694 lm
- CRI: >90
- lifespan L70: >= 33.000 h
- input: 350mA DC
- protection class III

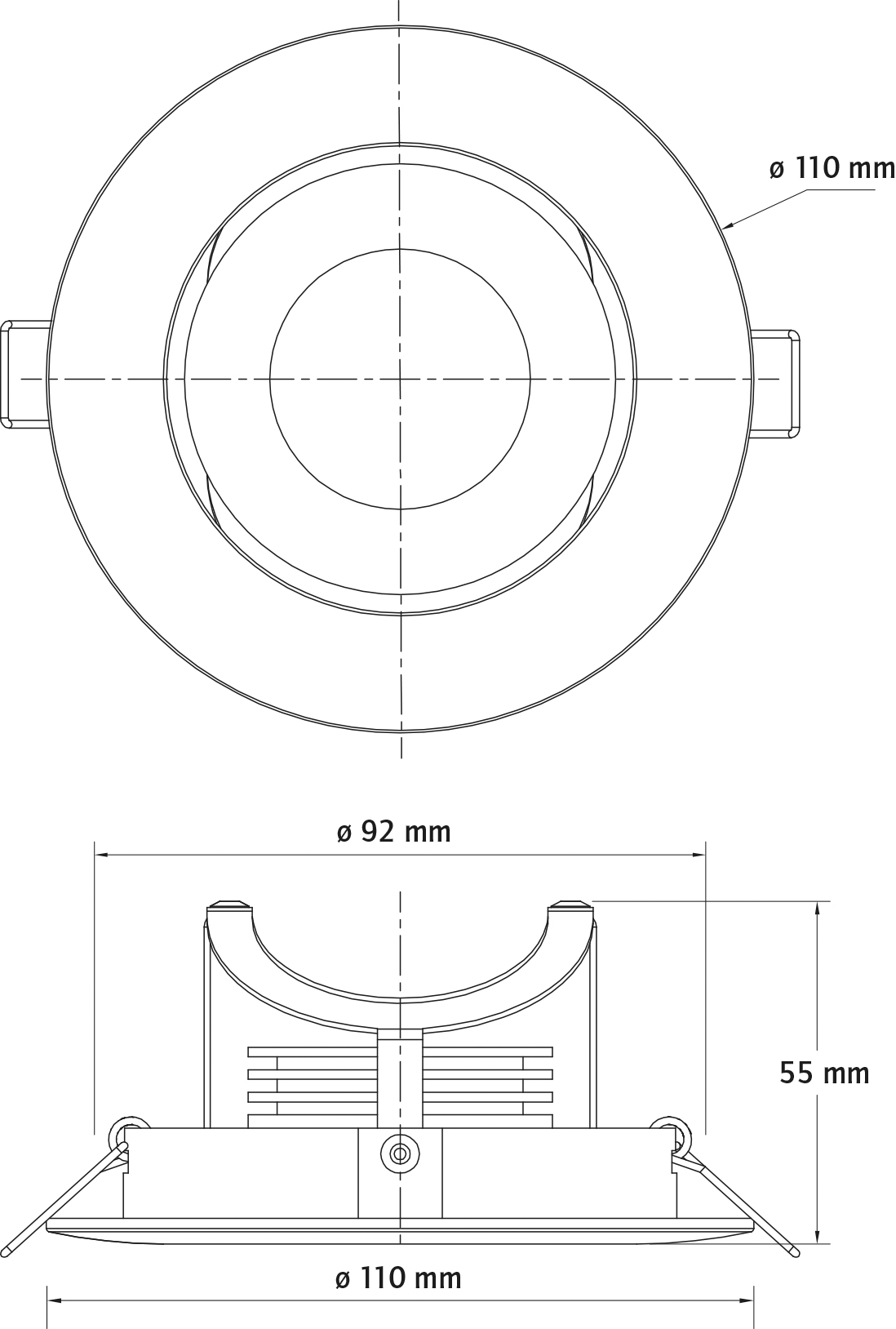

- installation depth: 55 mm
- ceiling cut out: 92 mm
- outer diameter: 110 mm
- energy efficiency class: A+
- not included LED converter
Technical Data
| BAR code: | 4012094076812 |
|---|---|
| Height: | 55 mm |
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 92 mm |
| Outer diameter: | 110 mm |
| Lumen per fixture (lm): | 694 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 55 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 86,75 |
| IP protection rating: | 20 |
| Power: | 8 W |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 25 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 80799,85444,85445-V2 |
| Auslaufartikel: | Yes |
| L70: | 33000 |
| Ecodesign: | not assigned |
