CE
Control gear interchangeable
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Independent converter
Interseroh
Light source interchangeable
Only suitable for indoor installations
Power factor correction
Protection class II
REACH
RoHS
Series connection
Short circuit protection
Suitable for furniture installations
Without snap ring
Product number:
ALU53393UWWD
LED Einbaustr. 8W gold m.Konv. dim

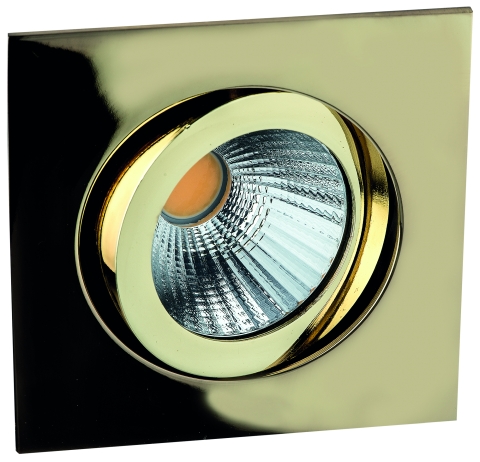

Product information "LED Einbaustr. 8W gold m.Konv. dim"
- for indoor use, IP 20
- housing: diecast aluminum, glass reflector, protective glass
- housing color: gold
- 30° swivelling
- beam angle: 25°
- power: 8 W
- light color: 2700 K
- luminous flux: 670 lm
- CRI: >90
- lifetime L70: >= 33.000 h
- input: 350 mA DC
- protection class III, MM

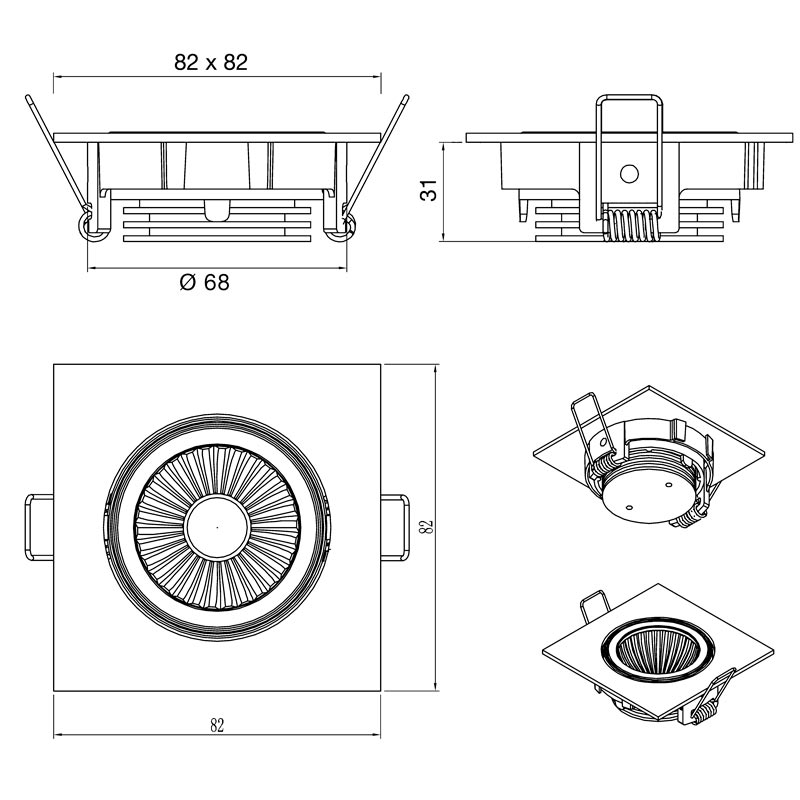

- installation depth: 40 mm
- ceiling cut-out: 68 mm
- outer dimensions: 82 x 82 mm
- including LED converter dimmable via tronic dimmer
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094533933 |
|---|---|
| Width: | 82 mm |
| Height: | 31 mm |
| Length: | 82 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Installation diameter: | 68 mm |
| Booformat eckig: | Yes |
| Lumen per fixture (lm): | 670 lm |
| Lumen per LED (lm): | 0,00 lm |
| Installation depth: | 40 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 83,75 |
| IP protection rating: | 20 |
| Power: | 8 W |
| CRI: | 90 |
| Catalog color code: | gold |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 25 Grad ° |
| Voltage: | 230 V |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 54999 |
| Auslaufartikel: | Yes |
| L70: | 33000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | containing product |
