CE
Control gear interchangeable
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Independent converter
Light source interchangeable
Only suitable for indoor installations
Power factor correction
Protection class II
Protection class III
RoHS
Series connection
Short circuit protection
Suitable for furniture installations
Without snap ring
Product number:
ALU53391NWD

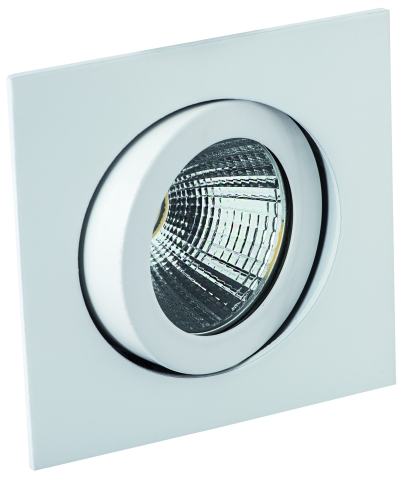

LED Einbaustr. 8W Weiß m.Konverter dim
Product information "LED Einbaustr. 8W Weiß m.Konverter dim"
- for indoor use, IP 20
- housing: diecast aluminum, glass reflector, protective glass
- housing color: white
- 30° swivelling
- beam angle: 25°
- power: 8 W
- light color: 4000 K
- luminous flux: 840 lm
- CRI: >90
- lifespan L70B50: >= 50,000 h
- input: 350 mA DC
- protection class III, MM

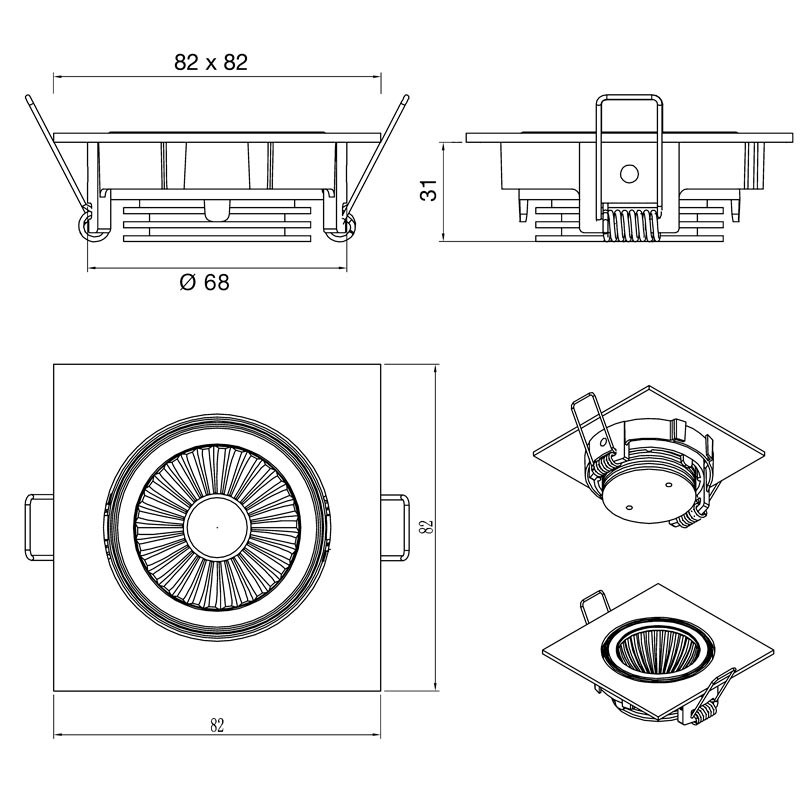

- installation depth: 40 mm
- ceiling cut-out: 68 mm
- outer dimensions: 82 x 82 mm
- including LED converter dimmable via tronic dimmer
- this product contains a light source of energy efficiency class E
Technical Data
| BAR code: | 4012094433912 |
|---|---|
| Width: | 82 mm |
| Height: | 31 mm |
| Length: | 82 mm |
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 68 mm |
| Booformat eckig: | Yes |
| Lumen per fixture (lm): | 840 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 40 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 105 |
| IP protection rating: | 20 |
| Power: | 8 W |
| CRI: | 90 |
| Catalog color code: | weiss |
| Led color code: | ca. 4000K neutralweiß |
| Leuchte: | including LED |
| Beam angle: | 25 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 54999 |
| Auslaufartikel: | Yes |
| L70: | 33000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | containing product |
