CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Protection class III
RoHS
Series connection
Without snap ring
Product number:
R5769V4AUWWOK
LED Einbaustr. 8W IP55 o.Konverter

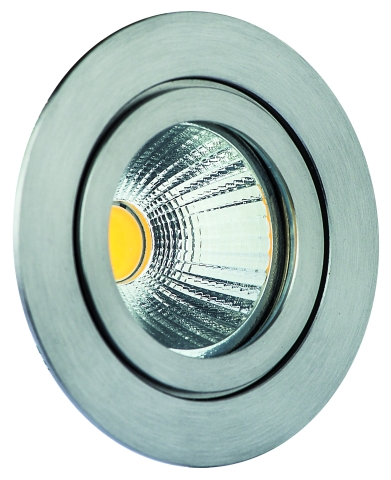

Product information "LED Einbaustr. 8W IP55 o.Konverter"
- for indoor- and outdoor use, IP 55
- housing: V4A stainless steel, glass reflector, protective glass
- housing color: stainless steel
- not swivelling
- beam angle: 25°
- power: 8 W
- light color: 2700 K
- luminous flux: 738 lm
- CRI: >80
- lifetime L70B50: >= 54.000 h
- input: 350 mA DC
- protection class III

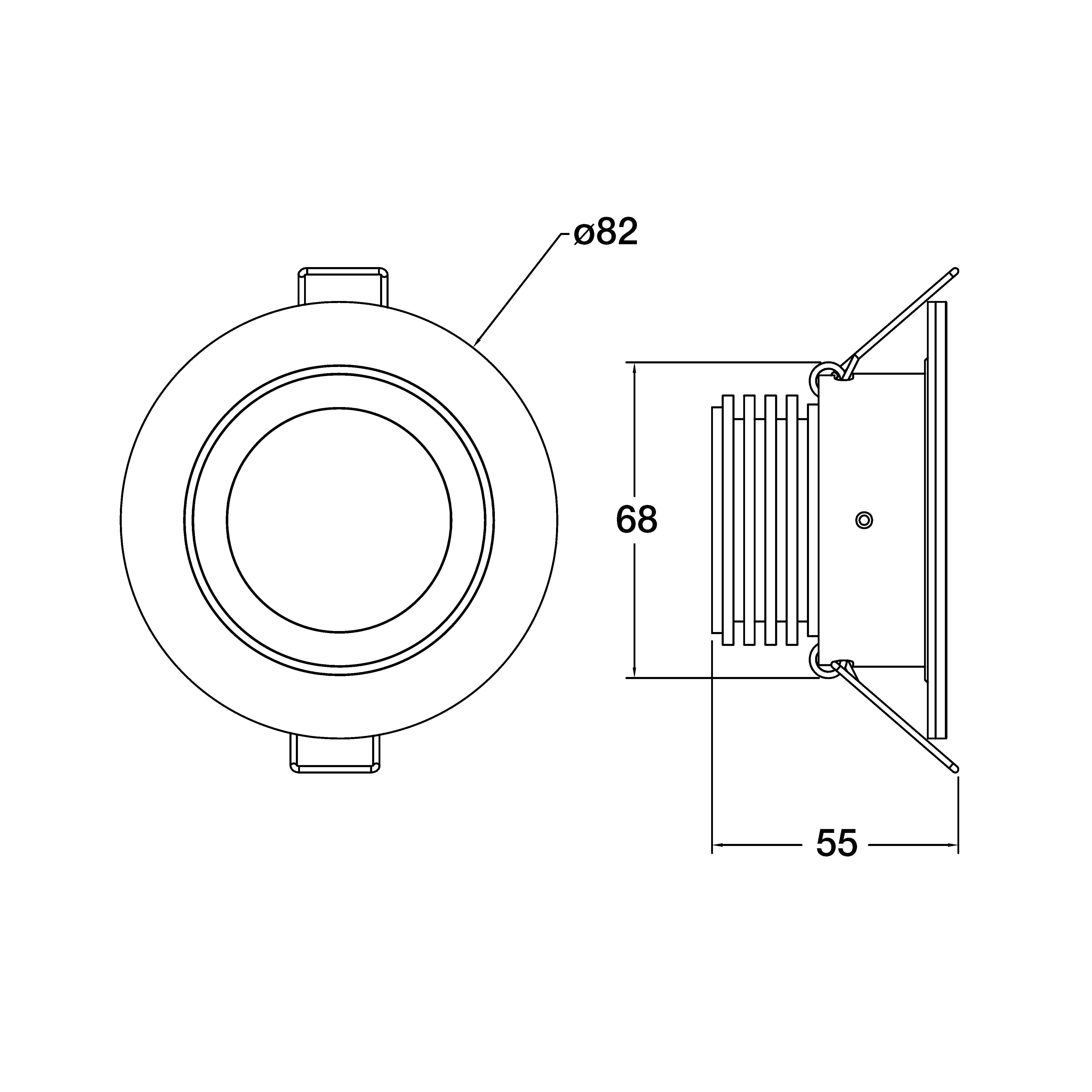

- installation depth: 55 mm
- ceiling cut-out: 68 mm
- outer diameter: 82 mm
- energie efficiency class: F
- not included LED converter
Technical Data
| BAR code: | 4012094476902 |
|---|---|
| Height: | 44 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 68 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 738 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 55 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 92,25 |
| IP protection rating: | 55 |
| Power: | 8 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | edelstahl |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 25 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Edelstahl |
| Re skus: | 55316,55317,83445,85444 |
| L70: | 33000 |
| LebensdauerL70B50: | 54000 |
| Ecodesign: | light source |
| Service life L90B10: | 46000 |
