CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Without snap ring
Product number:
ALU57352DTWOK-V2
LED Einbaustr. 7W schwarz o.Konverter

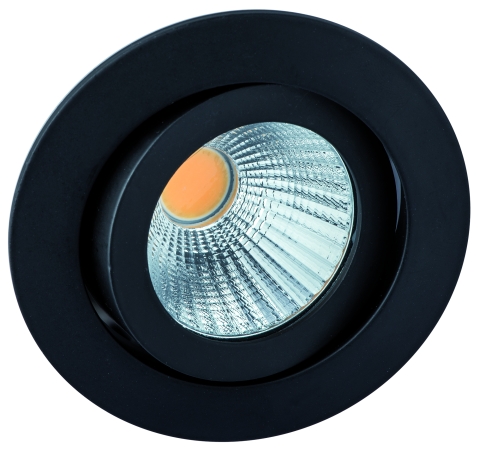

Product information "LED Einbaustr. 7W schwarz o.Konverter"
- for indoor use, IP 20
- housing: diecast aluminium, glass reflector, protective glass
- housing color: black
- 30 ° swiveling
- beam angle: 40°
- power: 7 W
- light color: 2300-3000K DimToWarm
- luminous flux: 504 lm
- CRI: >90
- lifetime L70B50: >= 55.000 h
- input: 350 mA
- protection class III

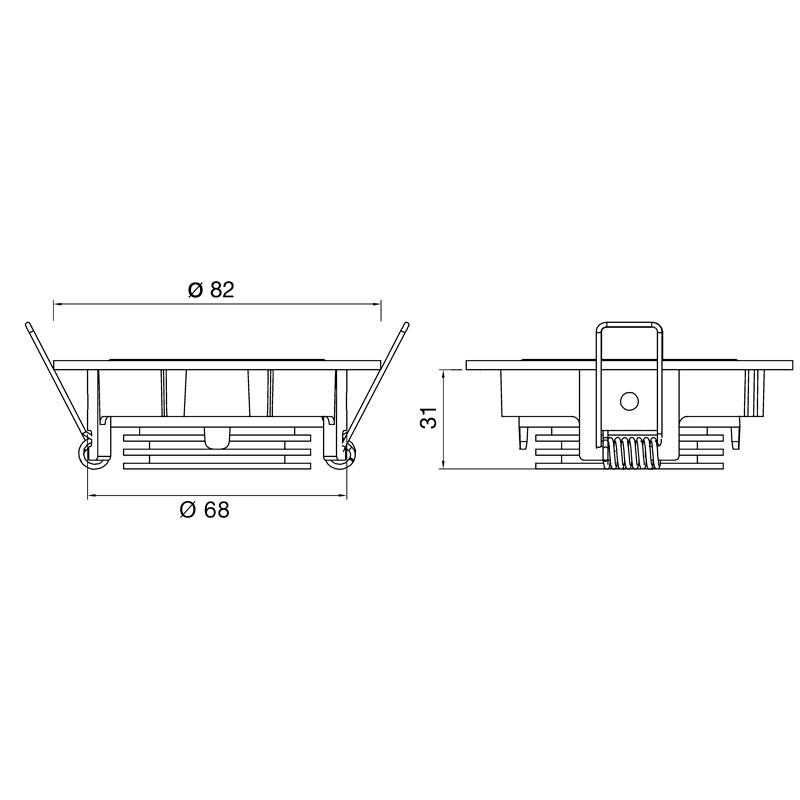

- installation depth: 40 mm
- ceiling cut-out: 68 mm
- outer diameter: 82 mm
- energie efficiency class: G
- not included LED converter
Technical Data
| BAR code: | 4012094173528 |
|---|---|
| Height: | 34 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Installation diameter: | 68 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 504 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 40 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 72 |
| IP protection rating: | 20 |
| Power: | 7 W |
| Energy efficiency class: | EEK-Label_G |
| CRI: | 90 |
| Catalog color code: | schwarz |
| Led color code: | 3000-2300K Dim to Warm |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 55000 |
| LebensdauerL70B50: | 55000 |
| Ecodesign: | light source |
| Service life L90B10: | 46000 |
