CE
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
RoHS
Series connection
Without snap ring
Product number:
ALU57356DTWOK

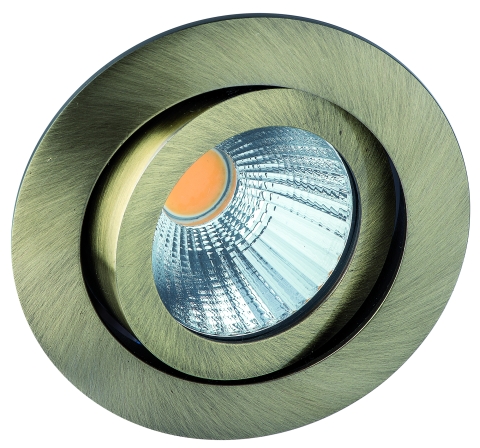

LED Einbaustr. 7W altmessing o.Konv.
Product information "LED Einbaustr. 7W altmessing o.Konv."
- for indoor use, IP 20
- housing: diecast aluminum, glass reflector, protective glass
- housing color: old brass
- 30° swivelling
- beam angle: 40°
- power: 7 W
- light color: 2200 - 2800 K DimToWarm
- luminous flux: 580 lm
- CRI: >80
- lifetime L70B50: >= 50.000 h
- input: 350 mA DC
- protection class III

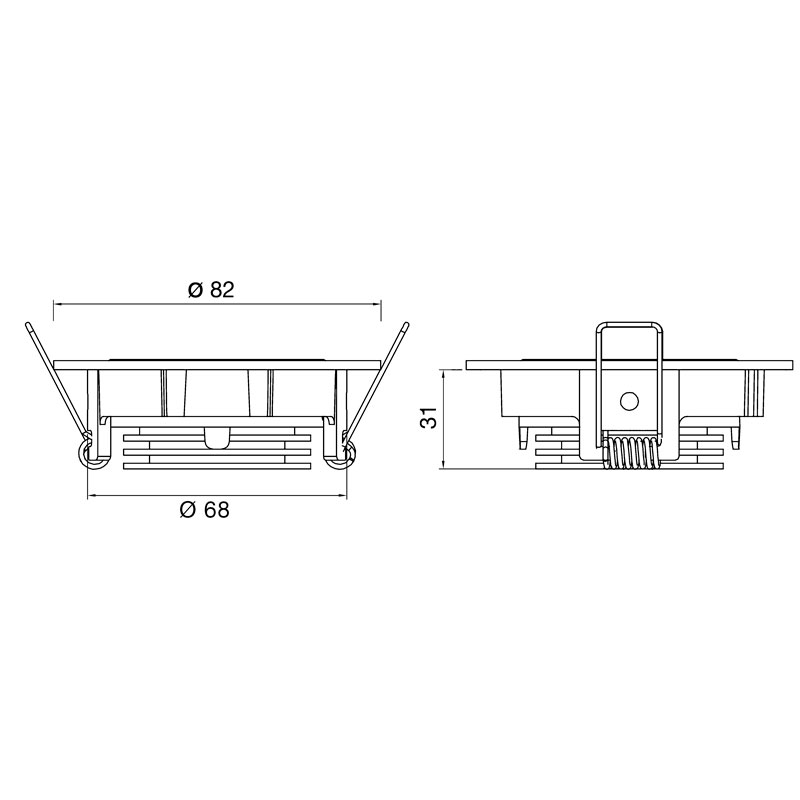

- installation depth: 40 mm
- ceiling cut-out: 68 mm
- outer diameter: 82 mm
- energie efficiency class: F
- not included LED converter
Technical Data
| BAR code: | 4012094071565 |
|---|---|
| Height: | 34 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Installation diameter: | 68 mm |
| Outer diameter: | 82 mm |
| Lumen per fixture (lm): | 580 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 40 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 82,86 |
| IP protection rating: | 20 |
| Power: | 7 W |
| Energy efficiency class: | EEK-Label_F |
| CRI: | 80 |
| Catalog color code: | altmessing |
| Led color code: | 2800-2000K Dim to Warm |
| Leuchte: | including LED |
| Beam angle: | 40 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Re skus: | 54999,85445-V2 |
| Auslaufartikel: | Yes |
| L70: | 39000 |
| LebensdauerL70B50: | 50000 |
| Ecodesign: | light source |
