CE
Do not cover with heat insulting materials
Independent converter
Only suitable for indoor installations
Power factor correction
Protection class II
Protection class III
RoHS
Series connection
Short circuit protection
Without snap ring
Product number:
ALU50372WW

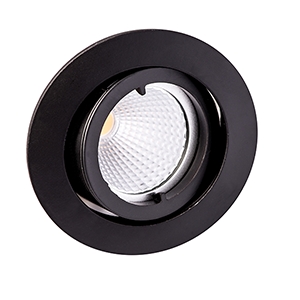

LED Einbaustr. 10W schwarz
Product information "LED Einbaustr. 10W schwarz"
- for indoor use, IP 20
- housing: diecast aluminum, aluminum reflector, transparent protective glass
- housing color: black
- 30° swivelling
- beam angle: 43°
- power: 10 W
- light color: 3000 K
- luminous flux: 1373 lm
- CRI: >80
- lifetime L70: >= 50.000 h
- input: 350 mA DC
- protection class III
- installation depth: 90 mm
- ceiling cut-out: 68 mm
- outer diameter: 83 mm
- energie efficiency class: A++
- including LED converter
Technical Data
| BAR code: | 4012094203720 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 68 mm |
| Outer diameter: | 83 mm |
| Lumen per fixture (lm): | 1373 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 90 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 137,3 |
| IP protection rating: | 20 |
| Power: | 10 W |
| CRI: | 80 |
| Catalog color code: | schwarz |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 43 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| Ecodesign: | not assigned |
