Product number:
ALU50375UWWD

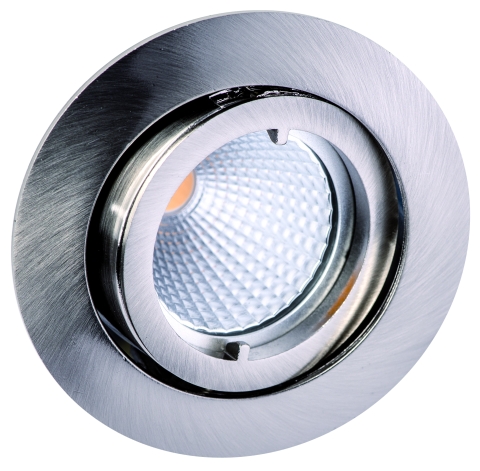

LED Einbaustr. 10W Eisen geb. dimmbar
Product information "LED Einbaustr. 10W Eisen geb. dimmbar"
- for indoor use, IP 20
- housing: diecast aluminum, aluminum reflector, protective glass transparent
- housing color: brushed iron
- 30° swiveling
- beam angle: 43°
- power: 10 W
- light color: 2700 K
- luminous flux: 1187 lm
- CRI: >80
- lifetime L70: >= 50.000 h
- input: 350 mA DC
- protection class III
- installation depth: 90 mm
- ceiling cut-out: 68 mm
- outer diameter: 83 mm
- energie efficiency class: A+
- including LED converter dimmable via tronic dimmer
Technical Data
| BAR code: | 4012094393759 |
|---|---|
| Unit Code: | piece |
| Customer discount group code: | R1 |
| Installation diameter: | 68 mm |
| Outer diameter: | 83 mm |
| Lumen per fixture (lm): | 1187 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 350 mA |
| Installation depth: | 90 mm |
| Temperature range: | -20 - 40 |
| Lumen per watt: | 118,7 |
| IP protection rating: | 20 |
| Power: | 10 W |
| CRI: | 80 |
| Catalog color code: | eisen-gebürstet |
| Led color code: | ca. 2700K ultra warmweiß |
| Leuchte: | including LED |
| Beam angle: | 43 Grad ° |
| Sockel code: | ohne |
| Anzahl led: | 1 |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| Ecodesign: | not assigned |
