CE
Ceiling cutout round
Disposal instructions according to 2012/19/EU
Do not cover with heat insulting materials
Only suitable for indoor installations
Protection class III
REACH
RoHS
Series connection
Product number:
48330

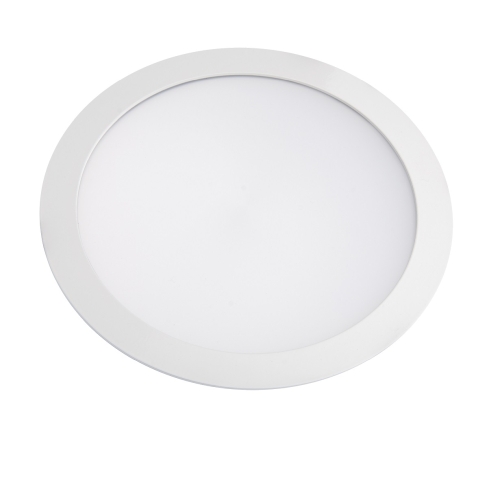

LED-EBS RUND WEISS 30W IP44 700mA
€31.90
Product information "LED-EBS RUND WEISS 30W IP44 700mA"
- housing: diecast aluminum (plastic protection cover, diffuse)
- housing colour: white
- not swivelling
- beam angle: 90°
- power: 30 W
- light colour: 3000 K ( 100K) warm white
- luminous flux: 3125 lm
- CRI: >80
- lifespan L70: >= 50.000 h
- input: 700 mA DC
- protection class III

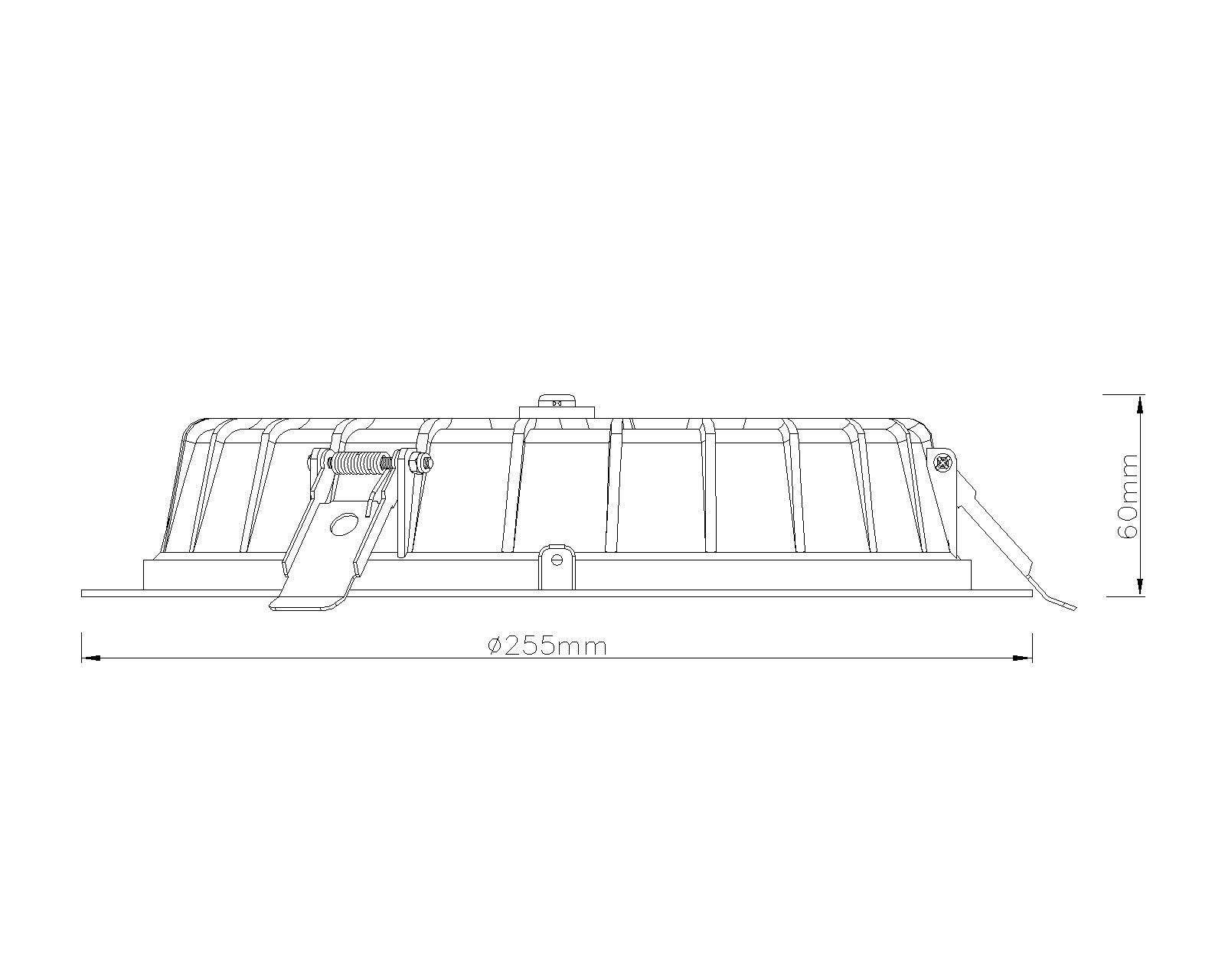

- installation depth: 70 mm
- ceiling cut-out: 235 mm
- outer diameter: 255 mm
- Energie efficiency class: E
- not including constant current converter (can only be operated with switchable converters)
- SECONDLIFE ITEM -heavily discounted- only while stocks last!
Technical Data
| BAR code: | 4012094483306 |
|---|---|
| Height: | 60 mm |
| Unit Code: | piece |
| Customer discount group code: | SL |
| Installation diameter: | 235 mm |
| Outer diameter: | 255 mm |
| Lumen per fixture (lm): | 3125 lm |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 700 mA |
| Installation depth: | 70 mm |
| Temperature range: | -20 - 50 |
| Lumen per watt: | 104,17 |
| IP protection rating: | 44 |
| Power: | 30 W |
| Energy efficiency class: | EEK-Label_E |
| CRI: | 80 |
| Catalog color code: | weiss |
| Led color code: | ca. 3000K warmweiß |
| Leuchte: | including LED |
| Beam angle: | 90 Grad ° |
| Sockel code: | ohne |
| Gehaeuse code: | Aluminium |
| Auslaufartikel: | Yes |
| L70: | 50000 |
| Ecodesign: | not assigned |
