Product number:
80473

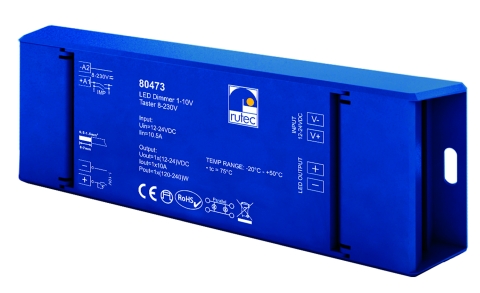

LED Dimmer 1-10V,Taster 8-230V
Product information "LED Dimmer 1-10V,Taster 8-230V"
- LED dimmer for analog dimming with soft control performance
- for indoor use
- 1 channel 10A, 120W (12V) or 240W (24V)
- puls-widthmodulation (PWM) at the output
- 2 control inputs: 1x 1-10V/potentiometer; 1x push-dim 8-230V AC/DC
- IP20
- protection class III, CE, RoHS
- dimming range: push-dim 0,1-100%; 1-10V/potentiometer 0-100%
- with memory effect
Technical Data
| BAR code: | 4012094804736 |
|---|---|
| Width: | 54 mm |
| Height: | 23 mm |
| Length: | 166 mm |
| Unit Code: | piece |
| Customer discount group code: | ST |
| Lumen per LED (lm): | 0,00 lm |
| Current: | 10000 mA |
| Temperature range: | -20 - 50 |
| IP protection rating: | 20 |
| Power: | 120-240 W |
| Catalog color code: | blau |
| Leuchte: | without |
| Input voltage: | 12-24 |
| Output voltage: | 12-24 |
| Gehaeuse code: | Kunststoff |
| Ecodesign: | not assigned |
